LFD21 Series

Catalog

RF FILTER 0805

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Mounting Type	Package / Case	Package / Case	Height (Max)	Height (Max) [Max]	Type	Frequency Bands (Low / High) [Min] [custom]	Frequency Bands (Low / High) [Min] [custom]	Frequency Bands (Low / High) [Max] [custom]	Frequency Bands (Low / High) [Max] [custom]	High Band Attenuation (min / max dB) [Max]	High Band Attenuation (min / max dB) [Min]	Low Band Attenuation (min / max dB) [Max]	Low Band Attenuation (min / max dB) [Min]	Bandwidth	Insertion Loss	Height (Max) [Max]	Filter Type	Frequency
Murata Power Solutions Inc. LFD212G45DP4A189	2 mm	0.079 in	0.049 in	1.25 mm	1 mm	0.039 in	Surface Mount	0805 (2012 Metric)	8 Leads
Murata Power Solutions Inc. LFD21859MDP2A076	2 mm	0.079 in	0.049 in	1.25 mm			Surface Mount	0805 (2012 Metric)	8 Leads	1.05 mm	0.041 in

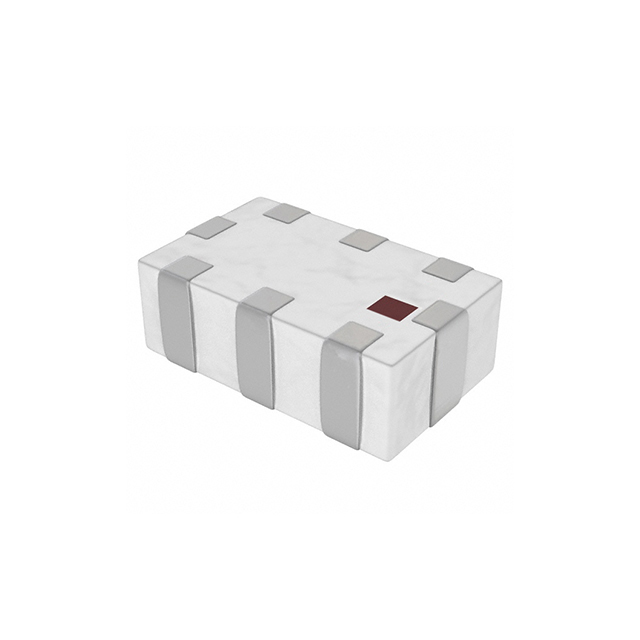

Murata Power Solutions Inc. LFD21859MDP1A049							Surface Mount	0805 (2012 Metric)	8 Leads			Diplexer	824 MHz	1.85 GHz	894 MHz	1.99 GHz	-	20 dB	-	19 dB
Murata Power Solutions Inc. LFD21868MMF1D386	2 mm	0.079 in	0.049 in	1.25 mm			Surface Mount	0805 (2012 Metric)	10 Leads		0.028 in										23.5 MHz	3.3 dB	0.7 mm	Balance	891.5 MHz

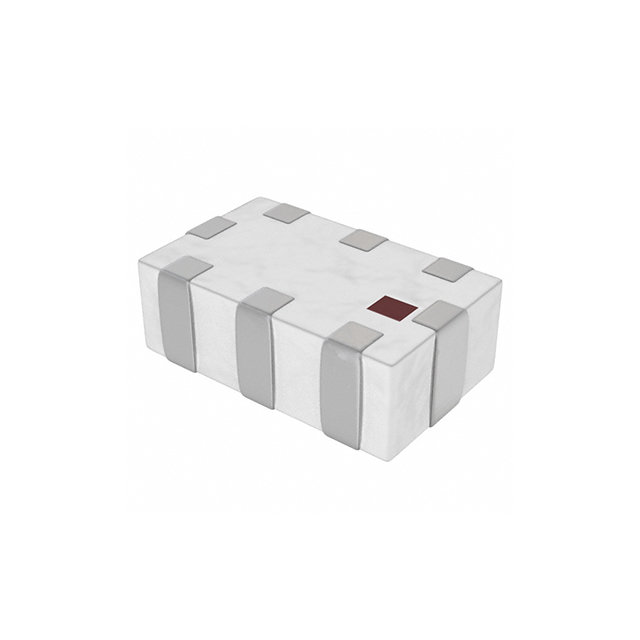

Murata Power Solutions Inc. LFD212G45DP3A188	2 mm	0.079 in	0.049 in	1.25 mm	1 mm	0.039 in	Surface Mount	0805 (2012 Metric)	8 Leads
Murata Power Solutions Inc. LFD212G45DP3A151	2 mm	0.079 in	0.049 in	1.25 mm	1 mm	0.039 in	Surface Mount	0805 (2012 Metric)	8 Leads
Murata Power Solutions Inc. LFD21874MDP1A084	2 mm	0.079 in	0.049 in	1.25 mm			Surface Mount	0805 (2012 Metric)	8 Leads	1.05 mm	0.041 in
