ANPB502012 Series
Manufacturer: European Thermodynamics Ltd
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

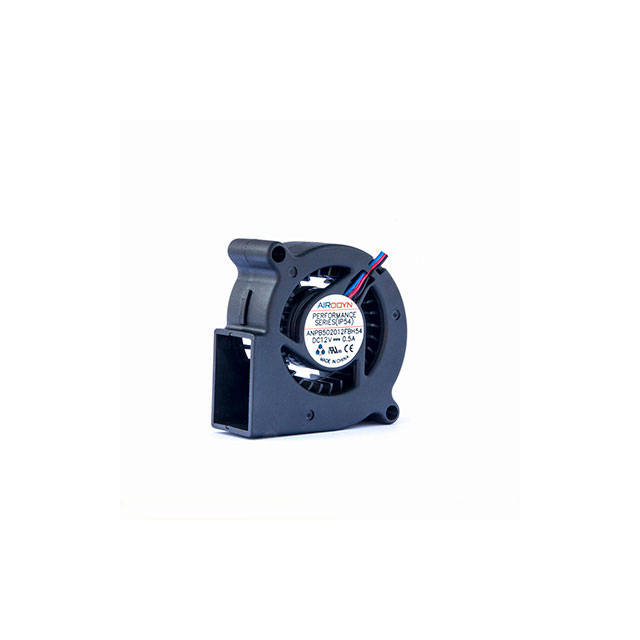

FAN BLOWER 50X20MM 12VDC WIRE
| Part | Size / Dimension Length | Size / Dimension Shape | Size / Dimension Height | Static Pressure | Termination Leads Count | Termination Type | Termination | Lifetime | Width | Ingress Protection IP Rating | Ingress Protection Description | Fan Type | Noise | Voltage - Rated | Air Flow | Features | Bearing Type | Power (Watts) | Current Rating | Operating Temperature (Min) | Operating Temperature (Max) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 European Thermodynamics Ltd | 50 mm | Square/Rounded | 50 mm | 0.85 in H2O | 3 | Wire Leads | 3 Wire Leads | 70000 Hrs | 20 mm | IP54 | Dust Protected Water Resistant | Blower | 40 dB | 12 VAC | 6.1 CFM | Locked Rotor Sensor | Ball | 3.6 W | 0.3 A | -4 °F | 158 °F | CE cURus |
 European Thermodynamics Ltd | 50 mm | Square/Rounded | 50 mm | 0.85 in H2O | 4 leads | Wire Leads | 4 Wire Leads | 70000 Hrs | 20 mm | IP54 | Dust Protected Water Resistant | Blower | 40 dB | 12 VAC | 6.1 CFM | PWM Control Speed Sensor (Tach) | Ball | 3.6 W | 0.3 A | -4 °F | 158 °F | CE cURus |
