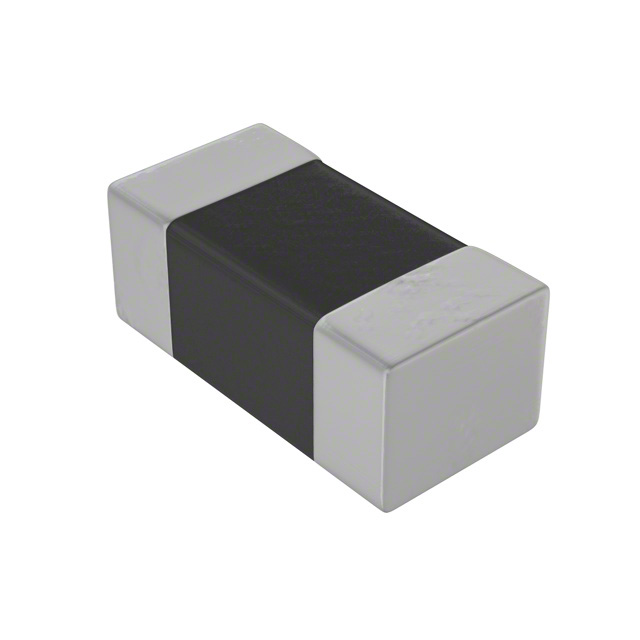

CS321613 Series

Catalog

FIXED IND 22UH 25MA 1.4 OHM SMD

Part	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	DC Resistance (DCR) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Package / Case	Inductance	Material - Core	Frequency - Self Resonant	Type	Inductance Frequency - Test	Supplier Device Package	Q @ Freq	Tolerance	Supplier Device Package	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. CS321613-220K	Surface Mount	0.059 "	1.5 mm	0.063 "	0.126 "	3.2 mm	1.6 mm	25 mA	1.4 Ohm	-55 C	125 °C	Shielded	1206 (3216 Metric)	22 µH	Ferrite	16 MHz	Multilayer	1 MHz	1206	1 MHz 45	10 %
Bourns Inc. CS321613-8R2K	Surface Mount	0.059 "	1.5 mm	0.063 "	0.126 "	3.2 mm	1.6 mm	25 mA		-55 C	125 °C	Shielded	1206 (3216 Metric)	8.2 µH	Ferrite	26 MHz	Multilayer	4 MHz	1206	4 MHz 65	10 %	3216 Metric
Bourns Inc. CS321613-R39K	Surface Mount	0.059 "	1.5 mm	0.063 "	0.126 "	3.2 mm	1.6 mm	0.2 A	300 mOhm	-55 C	125 °C	Shielded	1206 (3216 Metric)	390 nH	Ferrite	135 MHz	Multilayer	25 MHz	1206	25 MHz 50	10 %	3216 Metric
Bourns Inc. CS321613-3R9K	Surface Mount	0.059 "	1.5 mm	0.063 "	0.126 "	3.2 mm	1.6 mm	50 mA	800 mOhm	-55 C	125 °C	Shielded	1206 (3216 Metric)	3.9 µH	Ferrite	38 MHz	Multilayer	10 MHz	1206	10 MHz 85	10 %	3216 Metric
Bourns Inc. CS321613-100K	Surface Mount	0.059 "	1.5 mm	0.063 "	0.126 "	3.2 mm	1.6 mm	25 mA		-55 C	125 °C	Shielded	1206 (3216 Metric)	10 µH	Ferrite	24 MHz	Multilayer	2 MHz	1206		10 %		700 mOhm	2 MHz	65
Bourns Inc. CS321613-R47K	Surface Mount	0.059 "	1.5 mm	0.063 "	0.126 "	3.2 mm	1.6 mm	0.2 A	300 mOhm	-55 C	125 °C	Shielded	1206 (3216 Metric)	470 nH	Ferrite	125 MHz	Multilayer	25 MHz	1206	25 MHz 50	10 %	3216 Metric
Bourns Inc. CS321613-R18K	Surface Mount	0.059 "	1.5 mm	0.063 "	0.126 "	3.2 mm	1.6 mm	0.25 A		-55 C	125 °C	Shielded	1206 (3216 Metric)	180 nH	Ferrite	185 MHz	Multilayer	25 MHz	1206	25 MHz 50	10 %	3216 Metric	200 mOhm
Bourns Inc. CS321613-68NK	Surface Mount	0.059 "	1.5 mm	0.063 "	0.126 "	3.2 mm	1.6 mm	0.3 A		-55 C	125 °C	Shielded	1206 (3216 Metric)	68 nH	Ferrite	280 MHz	Multilayer	50 MHz	1206	50 MHz 60	10 %	3216 Metric	150 mOhm
Bourns Inc. CS321613-2R8K	Surface Mount	0.059 "	1.5 mm	0.063 "	0.126 "	3.2 mm	1.6 mm			-55 C	125 °C	Shielded	1206 (3216 Metric)	2.8 µH	Ferrite		Multilayer	10 MHz	1206		10 %	3216 Metric
Bourns Inc. CS321613-1R2K	Surface Mount	0.059 "	1.5 mm	0.063 "	0.126 "	3.2 mm	1.6 mm	100 mA	300 mOhm	-55 C	125 °C	Shielded	1206 (3216 Metric)	1.2 µH	Ferrite	65 MHz	Multilayer	10 MHz	1206		10 %	3216 Metric			80	10 MHz
