78458 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

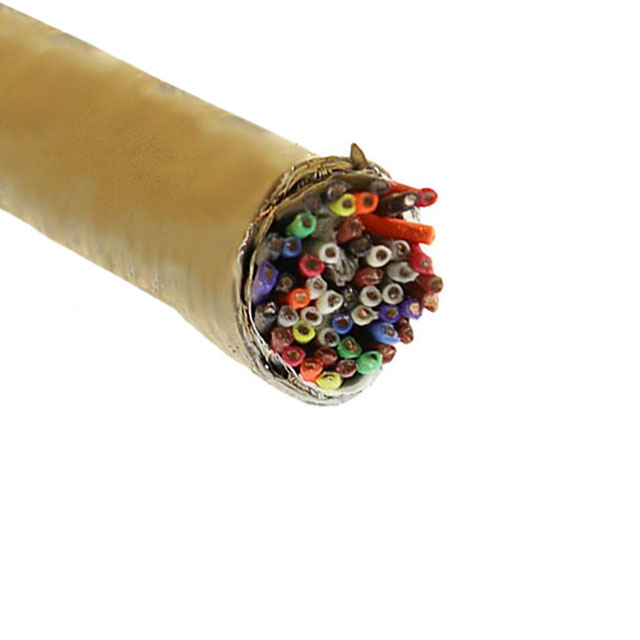

MULTIPAIR CABLE, ECOGEN™ ECOCABLE® MINI, SHIELDED, 25 PAIR, 24 AWG, 0.241 MM², 1000 FT, 305 M
| Part | Shield Coverage | Shield Material | Number of Conductors | Jacket (Insulation) Material | Jacket Color | Wire Gauge | Conductor Insulation | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Features | Cable Type | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Conductor Material | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Copper Tinned Suprashield® | 50 | Polyphenylene Ether Modified (mPPE) | Slate | 24 AWG | Polyphenylene Ether Modified (mPPE) | 300 VDC | 11.41 mm | 0.449 " | 0.381 mm | 0.015 in | Biological Compatibility Drain Wire Rip Cord | Multi-Pair | 304.8 m | 1000 ft | 80 °C | -40 C | Braid Foil | Copper Tinned | ISO 10993 UL Style 21460 | ||
 ALPHA WIRE | 100 % | Copper Tinned Suprashield® | 50 | Polyphenylene Ether Modified (mPPE) | Slate | 24 AWG | Polyphenylene Ether Modified (mPPE) | 300 VDC | 11.41 mm | 0.449 " | 0.381 mm | 0.015 in | Biological Compatibility Drain Wire Rip Cord | Multi-Pair | 80 °C | -40 C | Braid Foil | Copper Tinned | ISO 10993 UL Style 21460 | 100 ft | 30.5 m |
