SPHWHAHDNM231 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

LED COB D GEN3 WM WHT SQ 3000K

Part	Voltage - Forward (Vf) (Typ)	Configuration	Luminous Flux @ Current/Temperature	Lens Type	CCT (K)	CCT (K)	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Lumens/Watt @ Current - Test	Current - Test	Current - Max [Max]	Color	Temperature - Test	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Viewing Angle

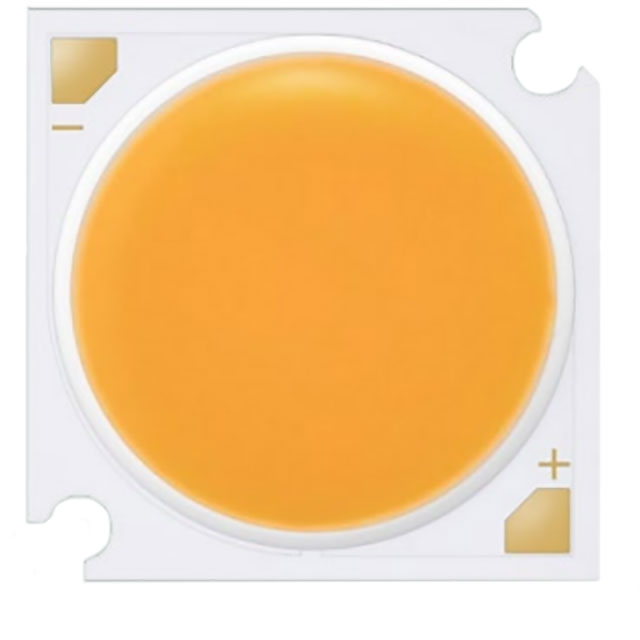

Samsung Semiconductor, Inc. SPHWHAHDNM231ZV3D3	50 V	Square	14115 lm	Flat	3-Step MacAdam Ellipse	3000 K	1.5 mm	28 mm	28 mm	Chip On Board (COB)	174 lm/W	1.62 A	4.14 A	Warm White	85 °C	70	22 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM231ZR3D2	52 V	Square	14112 lm	Flat	3-Step MacAdam Ellipse	5000 K	1.5 mm	28 mm	28 mm	Chip On Board (COB)	168 lm/W	1.62 A	4.14 A	Cool White	85 °C	70	22 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM231ZR3DB	51.1 V	Square	14041 lm	Flat	3-Step MacAdam Ellipse	5000 K	1.5 mm	28 mm	28 mm	Chip On Board (COB)	170 lm/W	1.62 A	3.24 A	Cool White	85 °C	70	22 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM231ZR3D3	50 V	Square	14637 lm	Flat	3-Step MacAdam Ellipse	5000 K	1.5 mm	28 mm	28 mm	Chip On Board (COB)	181 lm/W	1.62 A	4.14 A	Cool White	85 °C	70	22 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM231ZT3DB	51.1 V	Square	13966 lm	Flat	3-Step MacAdam Ellipse	4000 K	1.5 mm	28 mm	28 mm	Chip On Board (COB)	169 lm/W	1.62 A	3.24 A	Neutral White	85 °C	70	22 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM231ZT3U9	52 V	Square	12483 lm	Flat	3-Step MacAdam Ellipse	4000 K	1.5 mm	28 mm	28 mm	Chip On Board (COB)	148 lm/W	1.62 A	2.76 A	Neutral White	85 °C	70	22 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM231ZV3U5	52 V	Square	12084 lm	Flat	3-Step MacAdam Ellipse	3000 K	1.5 mm	28 mm	28 mm	Chip On Board (COB)	143 lm/W	1.62 A	2.76 A	Warm White	85 °C	70	22 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM231ZT3D2	52 V	Square	13896 lm	Flat	3-Step MacAdam Ellipse	4000 K	1.5 mm	28 mm	28 mm	Chip On Board (COB)	165 lm/W	1.62 A	4.14 A	Neutral White	85 °C	70	22 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM231ZV3DB	51.1 V	Square	13465 lm	Flat	3-Step MacAdam Ellipse	3000 K	1.5 mm	28 mm	28 mm	Chip On Board (COB)	163 lm/W	1.62 A	3.24 A	Warm White	85 °C	70	22 mm	115 °
Samsung Semiconductor, Inc. SPHWHAHDNM231ZR3DC		Square	14449 lm	Flat	3-Step MacAdam Ellipse	5000 K	1.5 mm	28 mm	28 mm	Chip On Board (COB)	177 lm/W	1.62 A	3.24 A	Cool White	85 °C	70	22 mm	115 °
