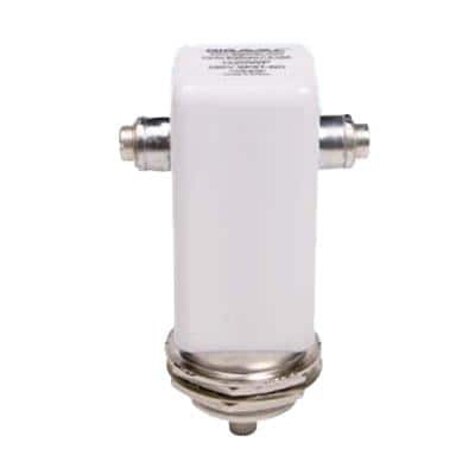

Industrial Relays 25KV SPST-NO HV RELAY
Industrial Relays 25KV SPST-NO HV RELAY
| Part | Contact Material | Coil Current | Operate Time | Coil Power | Coil Resistance | Release Time | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Coil Voltage | Must Operate Voltage | Form A Count | Contact Form | Operating Temperature (Max) | Operating Temperature (Min) | Must Release Voltage | Mounting Type | Termination Style | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata - Gigavac Industrial | Tungsten (W) | 57.5 mA | 18 ms | 6.6 W | 2000 Ohms | 10 ms | 25000 VAC | 25000 VDC | 115 VAC | 80 VDC | 1 | SPST-NO | 125 °C | -55 °C | 5 VDC | Panel Mount | Screw Terminal | 30 A |
 Sensata - Gigavac Industrial | Tungsten (W) | 500 mA | 18 ms | 6 W | 24 Ohms | 10 ms | 25000 VAC | 25000 VDC | 12 VAC | 8 VDC | 1 | SPST-NO | 125 °C | -55 °C | 0.5 VDC | Panel Mount | Screw Terminal | 30 A |
