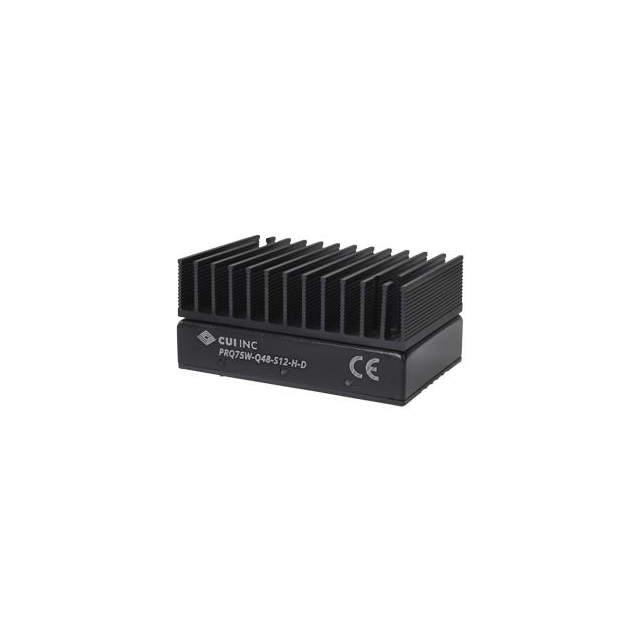

PRQ75W-D Series
Manufacturer: CUI Inc.
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE THE FACTORY IS CURRENTLY NOT ACCEPTING ORDERS FOR THIS PRODUCT.
| Part | Supplier Device Package | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Efficiency | Standard Number | Features | Type | Package / Case | Voltage - Input (Min) [Min] | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Approval Agency | Power (Watts) | Voltage - Isolation | Voltage - Output 1 | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Quarter Brick | -40 °C | 85 °C | 1 | 92 % | 62368-1 | Heat Sink Remote On/Off Remote Sense | Isolated Module | Quarter Brick | 18 V | ITE (Commercial) | 40.2 mm | 1.09 " | 27.7 mm | 2.43 in | 1.58 " | 61.8 mm | Through Hole | CE | 75 W | 2250 VDC | 24 V | 75 V | 3.13 A |
