OSTVN12 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

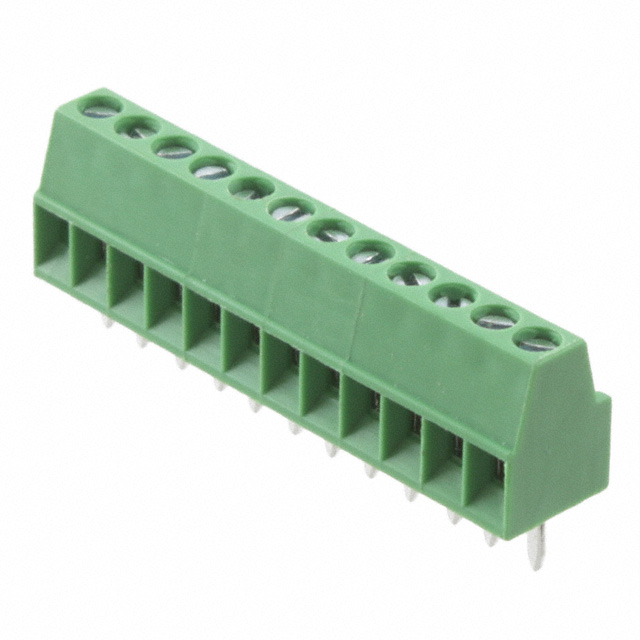

TERM BLK 12P SIDE ENT 2.54MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Screw Thread | Clamp Material - Plating | Housing Material | Torque - Screw | Torque - Screw | Screw Material - Plating | Pitch | Pitch | Color | Mating Orientation | Wire Termination | Current | Number of Levels | Mounting Type | Voltage | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | Brass | M1.6 | Brass | Thermoplastic | 1.3 Lb-In | 0.15 Nm | Steel - Zinc Plated | 0.1 " | 2.54 mm | Green | Horizontal with Board | Screw - Rising Cage Clamp | 6 A | 1 | Through Hole | 150 V | 12 |
