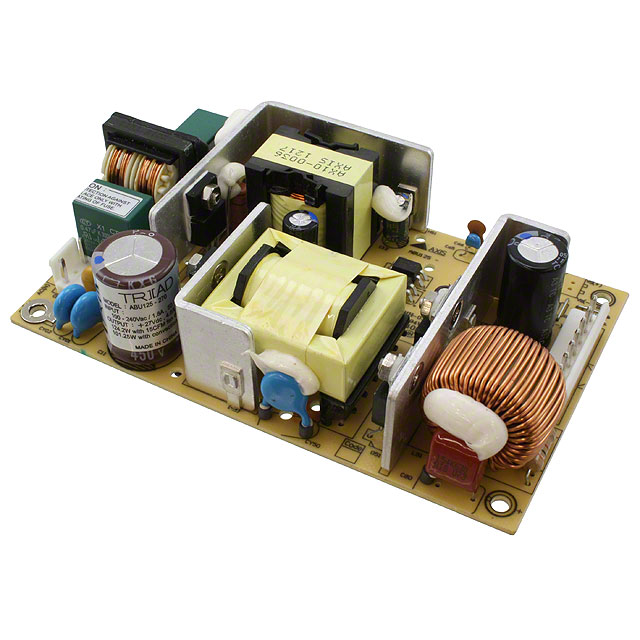

ABU125 Series
Manufacturer: Triad Magnetics
Beta
⌘K
SWITCHING POWER SUPPLIES POWER SUPPLY, INPUT: 90-264VAC PFC, 50/60HZ, OUTPUT: 24VDC, 5.2A, 100W (125W W/FAN). SAFETY APPROVALS: CRU, RU, TUV, CB, CE
| Part | Features | Applications | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Approval Agency | Voltage - Output 1 | Current - Output 1 | Voltage - Isolation | Mounting Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Efficiency | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Triad Magnetics | Adjustable Output DC Input Capable PFC Universal Input | ITE (Commercial) | 127 mm | 26.6 mm | 1.05 in | 76.2 mm | 5 " | 3 " | 100 W | CB CE TUV UR | 24 V | 4.16 A | 3000 V | Chassis Mount | Open Frame | 70 °C | -20 °C | 264 VAC | 90 VAC | 1 | 87 % | |
 Triad Magnetics | Adjustable Output DC Input Capable PFC Universal Input | ITE (Commercial) | 127 mm | 26.6 mm | 1.05 in | 76.2 mm | 5 " | 3 " | 100 W | CB CE TUV UR | 27 V | 3.7 A | 3000 V | Chassis Mount | Open Frame | 70 °C | -20 °C | 264 VAC | 90 VAC | 1 | 87 % | |
 Triad Magnetics | Adjustable Output DC Input Capable PFC Universal Input | ITE (Commercial) | 127 mm | 26.6 mm | 1.05 in | 76.2 mm | 5 " | 3 " | 100 W | CB CE TUV UR | 15 V | 6.67 A | 3000 V | Chassis Mount | Open Frame | 70 °C | -20 °C | 264 VAC | 90 VAC | 1 | 87 % |
