MJ1 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K

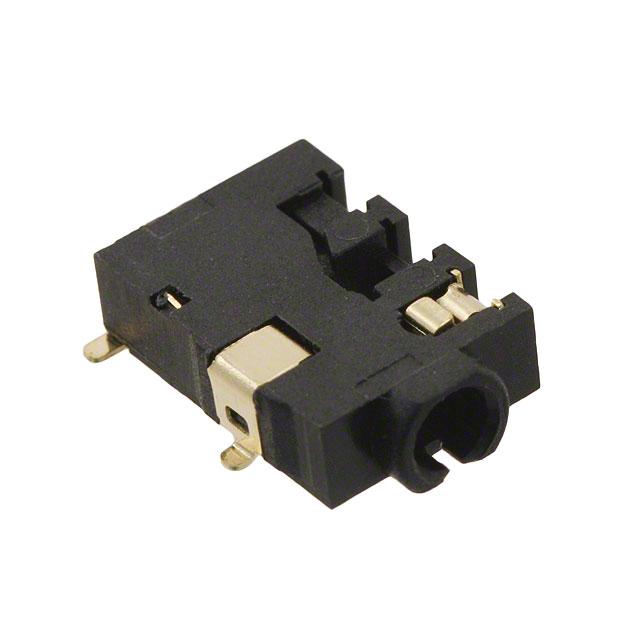

CONN 3.5MM MONO JACK RCP 2 POS SOLDER RA SMD 3 TERMINAL 1 PORT T/R
| Part | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Signal Lines | Connector Type | Actual Diameter [diameter] | Actual Diameter [diameter] | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Mounting Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Features | Internal Switch(s) | Gender | Contact Material - Plating | Contact Material | Current Rating (Amps) | Voltage - Rated | Body Color | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 0.125 in | 3.5 mm | 0.141 in | Mono | Phone Jack | 0.142 in | 3.6 mm | Unshielded | 85 °C | -25 °C | Solder | Right Angle Surface Mount | 2 | 3 | Board Guide | Single Switch | Female | ||||||
Same Sky (Formerly CUI Devices) | 0.125 in | 3.5 mm | 0.141 in | Mono | Phone Jack | 0.142 in | 3.6 mm | Unshielded | 85 °C | -25 °C | Solder | Right Angle Surface Mount | 2 | 3 | Board Guide | Single Switch | Female | Gold | Brass Copper Alloy | 0.3 A | 16 V | Black | Nylon 6T Polyamide (PA6T) |
 Same Sky (Formerly CUI Devices) | 3 /32" | 2.5 mm | 0.094 " | Mono | Phone Jack | 0.102 in | 2.6 mm | Unshielded | 85 °C | -25 °C | Solder | Right Angle Surface Mount | 2 | 3 | Board Guide | Single Switch | Female | ||||||
 Same Sky (Formerly CUI Devices) | 3 /32" | 2.5 mm | 0.094 " | Mono | Phone Jack | 0.102 in | 2.6 mm | Unshielded | 85 °C | -25 °C | Solder | Right Angle Surface Mount | 2 | 3 | Board Guide | Single Switch | Female | ||||||
Same Sky (Formerly CUI Devices) | 3 /32" | 2.5 mm | 0.094 " | Mono | Phone Jack | 0.102 in | 2.6 mm | Unshielded | 85 °C | -25 °C | Solder | Right Angle Surface Mount | 2 | 3 | Board Guide | Single Switch | Female | Gold | Brass Copper Alloy | 1 A | 12 VDC | Black | Nylon 6T Polyamide (PA6T) |
Same Sky (Formerly CUI Devices) | 3 /32" | 2.5 mm | 0.094 " | Mono | Phone Jack | 0.102 in | 2.6 mm | Unshielded | 85 °C | -25 °C | Solder | Right Angle Surface Mount | 2 | 3 | Board Guide | Single Switch | Female | Gold | Brass Copper Alloy | 1 A | 12 VDC | Black | Nylon 6T Polyamide (PA6T) |
