CH2NBS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB DPDT 1A 125V
| Part | Electrical Life | Voltage Rating - AC | Ingress Protection | Illumination Type, Color | Termination Style | Panel Cutout Dimensions [diameter] | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Actuator Marking | Color - Actuator/Cap | Circuit | Switch Function | Mounting Type | Type | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

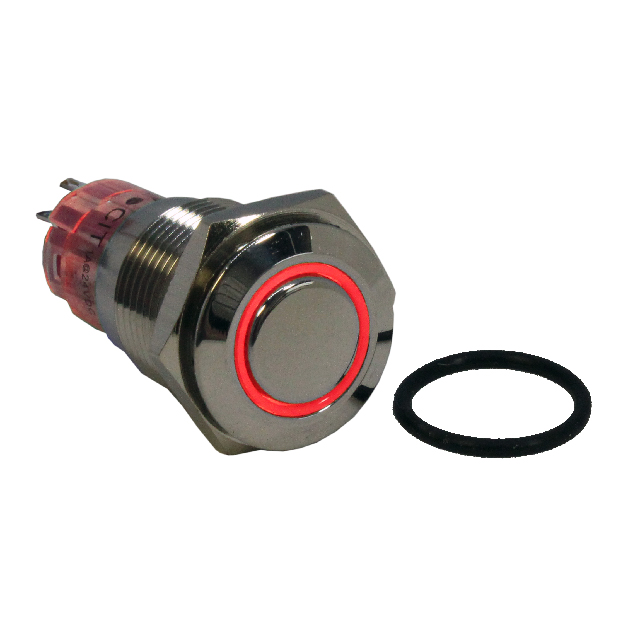

 CIT Relay and Switch | 30000 Cycles | 125 V | IP67 - Dust Tight Waterproof | Green/Red LED | Solder Lug | 16 mm | Button Flush Round | -25 °C | 70 °C | 24 V | No Marking | Silver | DPDT | On-Mom | Panel Mount Front | Anti-Vandal Illuminated | 1 A | Stainless Steel |

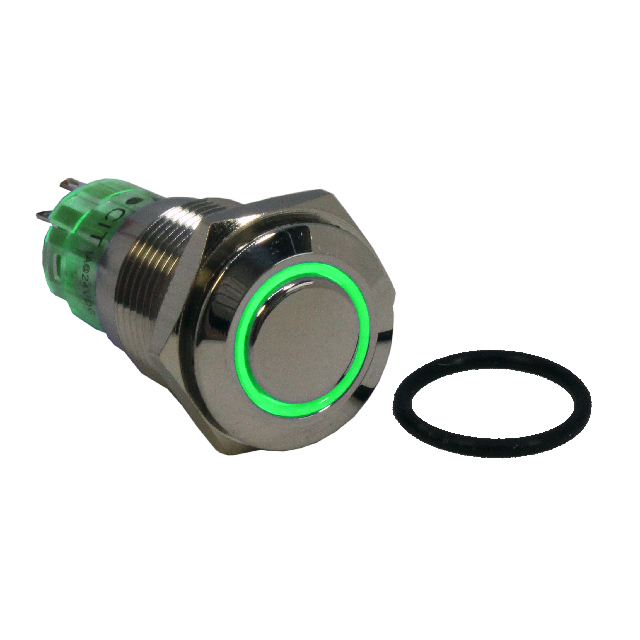

 CIT Relay and Switch | 30000 Cycles | 125 V | IP67 - Dust Tight Waterproof | Green LED | Solder Lug | 16 mm | Button Flush Round | -25 °C | 70 °C | 24 V | No Marking | Silver | DPDT | On-Mom | Panel Mount Front | Anti-Vandal Illuminated | 1 A | Stainless Steel |
