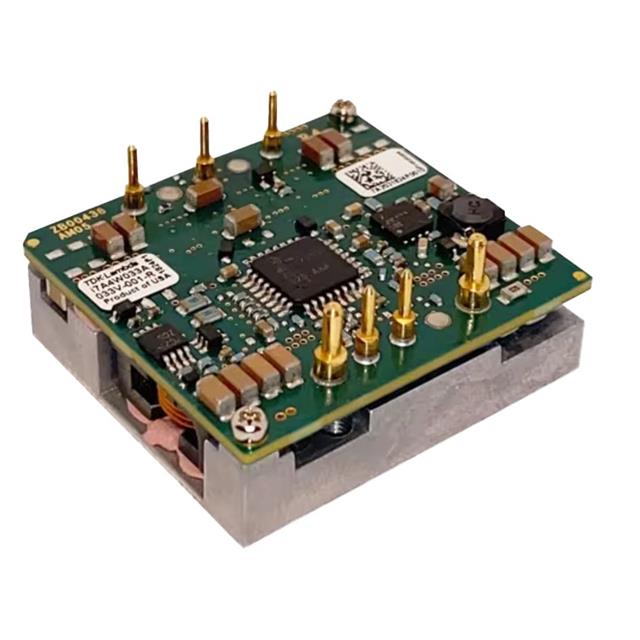

i7A Series

Catalog

NON-ISOLATED DC/DC CONVERTERS INPUT 48VDC OUTPUT 3.3-32V 20A 500W NEG LOGIC OCP ADJUST HEATSINK

Part	Mounting Type	Efficiency	Approval Agency	Power (Watts)	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Control Features	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Max) [Max]	Applications	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Features	Package / Case	Number of Outputs	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]
TDK Corporation I7A48020A033V-0F3-R	Through Hole	96 %	CE UKCA	640 W	28 V	20 A	Active Low Enable	3.3 V	32 V	60 V	ITE (Commercial)	Sixteenth Brick	1.34 in	36.8 mm	0.98 in	34 mm	1.45 in	24.9 mm	Non-Isolated PoL Module	Adjustable Output Remote On/Off Remote Sense	Sixteenth Brick	1	62368-1	-40 °C	125 °C
TDK Corporation i7A24045A033V-0C3-R	Through Hole	98.5 %	CE UKCA	810 W	18 V	45 A	Active Low Enable			32 V	ITE (Commercial)	Sixteenth Brick	1.34 in	36.8 mm	0.5 in	34 mm	1.45 in	12.7 mm	Non-Isolated PoL Module	Adjustable Output Baseplate Remote On/Off Remote Sense	Sixteenth Brick	1	62368-1	-40 °C	125 °C	18 V	3.3 V
TDK Corporation I7A48020A033V-0C1-R	Through Hole	96 %	CE UKCA	640 W	28 V	20 A	Active Low Enable	3.3 V	32 V	60 V	ITE (Commercial)	Sixteenth Brick	1.34 in	36.8 mm	0.5 in	34 mm	1.45 in	12.7 mm	Non-Isolated PoL Module		Sixteenth Brick	1	62368-1	-40 °C	125 °C
