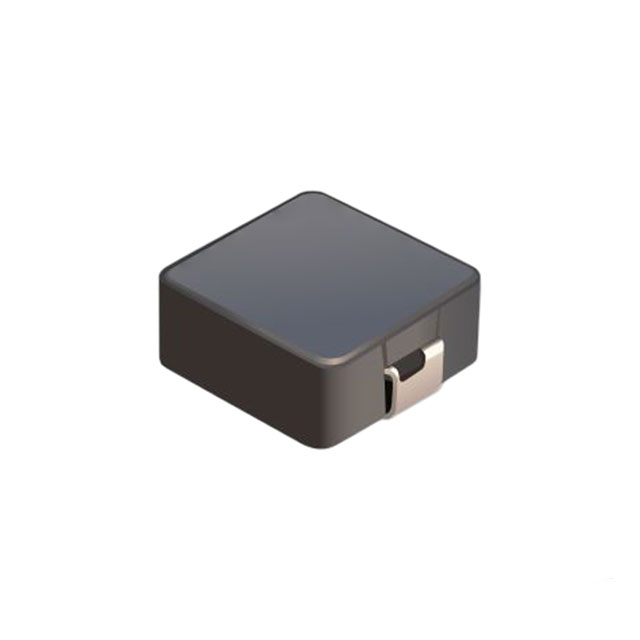

SRP7028AA Series
Manufacturer: Bourns Inc.
Beta
⌘K
IND,7.1X6.6X2.8MM,3.3UH±20%,6.5A,SHD,SMD /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES
| Part | Frequency - Self Resonant | Inductance Frequency - Test | Mounting Type | Type | Tolerance | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Package / Case | Current - Saturation (Isat) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Material - Core | Inductance | Q @ Freq | Ratings | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 22 MHz | 100 kHz | Surface Mount | Drum Core Wirewound | 20 % | 6.5 A | 155 C | -55 C | Shielded | Nonstandard | 9.5 A | 0.118 " | 3 mm | Metal | 3.3 µH | 10 100 kHz | AEC-Q200 | |
 Bourns Inc. | 10 MHz | 100 kHz | Surface Mount | Drum Core Wirewound | 20 % | 3 A | 155 C | -55 C | Shielded | Nonstandard | 4.5 A | 0.118 " | 3 mm | Metal | 15 µH | 10 100 kHz | AEC-Q200 | 140 mOhm |
