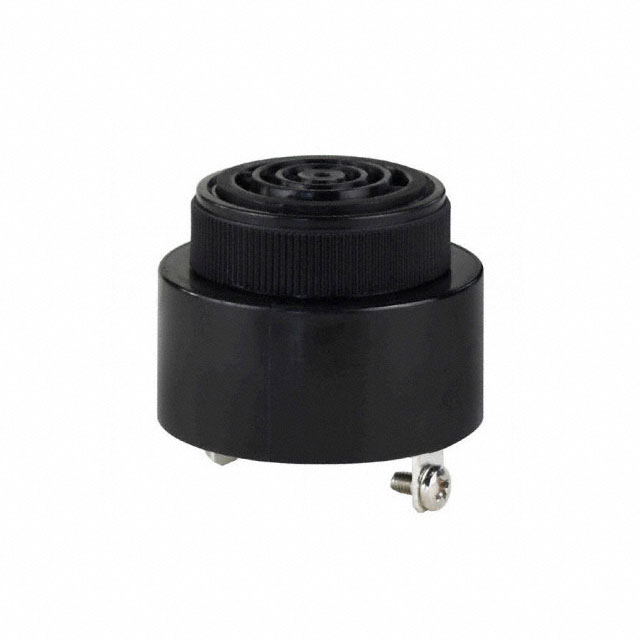

CPI-4232 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

BUZZER PIEZO 12V 42.50MM PNL MNT

Part	Voltage - Rated	Termination	Termination	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Driver Circuitry	Input Type	Port Location	Frequency	Voltage Range [Max]	Voltage Range [Min]	Technology	Mounting Type	Duration	Current - Supply [Min]	Current - Supply [Max]	Sound Pressure Level (SPL)	Operating Temperature [Max]	Operating Temperature [Min]	Operating Mode	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]
Same Sky (Formerly CUI Devices) CPI-4232-70ST	12 VDC	0.256 "	Quick Connect Tab Screw Terminal	6.5 mm	42.5 mm	1.673 "	Indicator Internally Driven	DC	Top	2.9 kHz	16 V	6 VDC	Piezo	Panel Mount	2 Sec	4 mA	12 mA	78 dB	85 °C	-30 ░C	Chime	32.5 mm	1.28 in
Same Sky (Formerly CUI Devices) CPI-4232C-120	12 VDC	0.256 "	Quick Connect Tab Screw Terminal	6.5 mm	42.5 mm	1.673 "	Indicator Internally Driven	DC	Top	2.9 kHz	18 VDC	8 V	Piezo	Panel Mount		8 mA	24 mA	95 dB	85 °C	-30 ░C	Single Tone			1.299 in	33 mm
Same Sky (Formerly CUI Devices) CPI-4232-70ST	12 VDC	0.256 "	Quick Connect Tab Screw Terminal	6.5 mm	42.5 mm	1.673 "	Indicator Internally Driven	DC	Top	2.9 kHz	16 V	6 VDC	Piezo	Panel Mount	2 Sec	4 mA	12 mA	78 dB	85 °C	-30 ░C	Chime	32.5 mm	1.28 in
Same Sky (Formerly CUI Devices) CPI-4232C-120	12 VDC	0.256 "	Quick Connect Tab Screw Terminal	6.5 mm	42.5 mm	1.673 "	Indicator Internally Driven	DC	Top	2.9 kHz	18 VDC	8 V	Piezo	Panel Mount		8 mA	24 mA	95 dB	85 °C	-30 ░C	Single Tone			1.299 in	33 mm
Same Sky (Formerly CUI Devices) CPI-4232-72FST	12 VDC	0.256 "	Quick Connect Tab Screw Terminal	6.5 mm	42.5 mm	1.673 "	Indicator Internally Driven	DC	Top	2.8 kHz	28 V	6 VDC	Piezo	Panel Mount		2 mA	15 mA	80 dB	85 °C	-30 ░C	Fast Pulse	32.5 mm	1.28 in
