CMC-4015 Series

Catalog

MIC COND ANLG OMNI -40DB 0.157"D

Part	Sensitivity	Voltage - Rated	Direction	Type	Voltage Range [Min]	Voltage Range [Max]	Port Location	Height (Max) [z]	Height (Max) [z]	Shape	Current - Supply	S/N Ratio	Frequency Range [Max]	Frequency Range [Min]	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Impedance	Output Type	Ratings	Height (Max) [z]

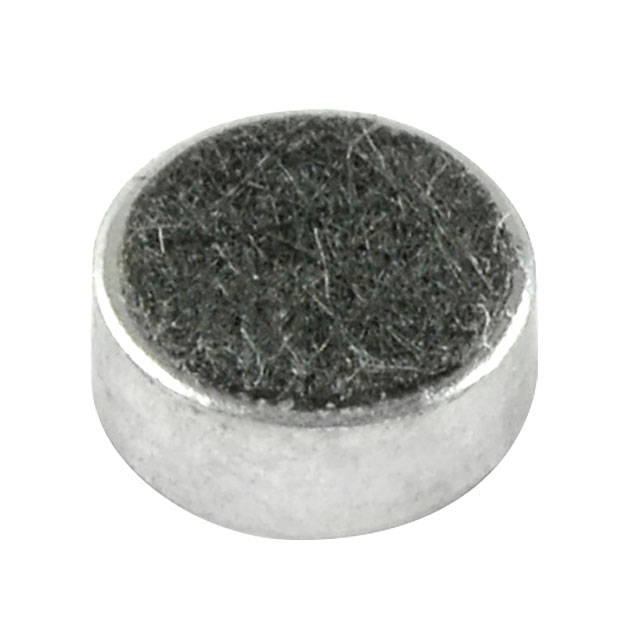

Same Sky (Formerly CUI Devices) CMC-4015-40T	-40 dB	2 VDC	Omnidirectional	Electret Condenser	2 V	10 V	Top	1.7 mm	0.067 in	Circular	500 µA	58 dB	20 kHz	100 Hz	Solder Pads	4 mm	0.157 in	2.2 kOhms	Analog
Same Sky (Formerly CUI Devices) CMC-4015-130T	-42 dB	2 VDC	Omnidirectional	Electret Condenser	2 V	10 V	Top		1.5 mm	Circular	500 µA	60 dB	20 kHz	100 Hz	Solder Pads	4 mm	0.157 in	2.2 kOhms	Analog	IP67	0.059 in
Same Sky (Formerly CUI Devices) CMC-4015-130T	-42 dB	2 VDC	Omnidirectional	Electret Condenser	2 V	10 V	Top		1.5 mm	Circular	500 µA	60 dB	20 kHz	100 Hz	Solder Pads	4 mm	0.157 in	2.2 kOhms	Analog	IP67	0.059 in
