IPZ65R019 Series
Manufacturer: INFINEON
Beta
⌘K

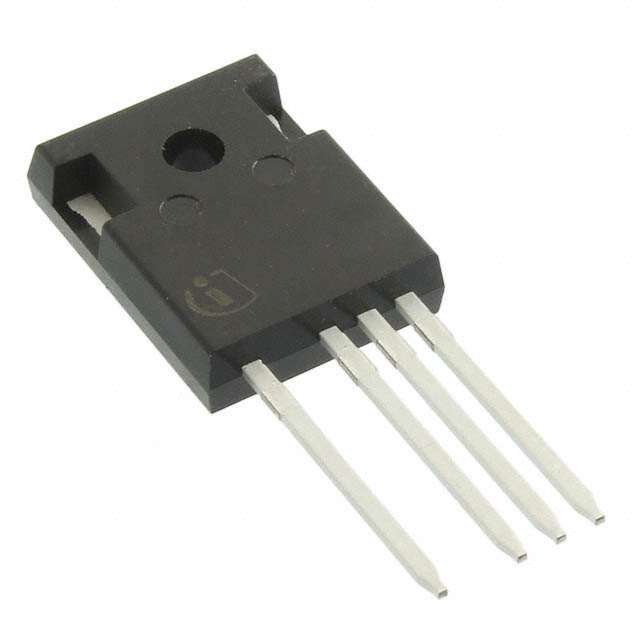

COOLMOS™ C7 N-CHANNEL SUPERJUNCTION MOSFET 650 V ; TO-247 4PIN PACKAGE; 19 MOHM; HIGHEST PERFORMANCE
| Part | Gate Charge (Qg) (Max) @ Vgs [Max] | Package / Case | Mounting Type | Input Capacitance (Ciss) (Max) @ Vds [Max] | Vgs(th) (Max) @ Id | Drive Voltage (Max Rds On, Min Rds On) | Technology | Drain to Source Voltage (Vdss) | Vgs (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Current - Continuous Drain (Id) @ 25°C | FET Type | Power Dissipation (Max) | Supplier Device Package | Rds On (Max) @ Id, Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 215 nC | TO-247-4 | Through Hole | 9900 pF | 4 V | 10 V | MOSFET (Metal Oxide) | 650 V | 20 V | 150 °C | -55 °C | 75 A | N-Channel | 446 W | PG-TO247-4 | 19 mOhm |
