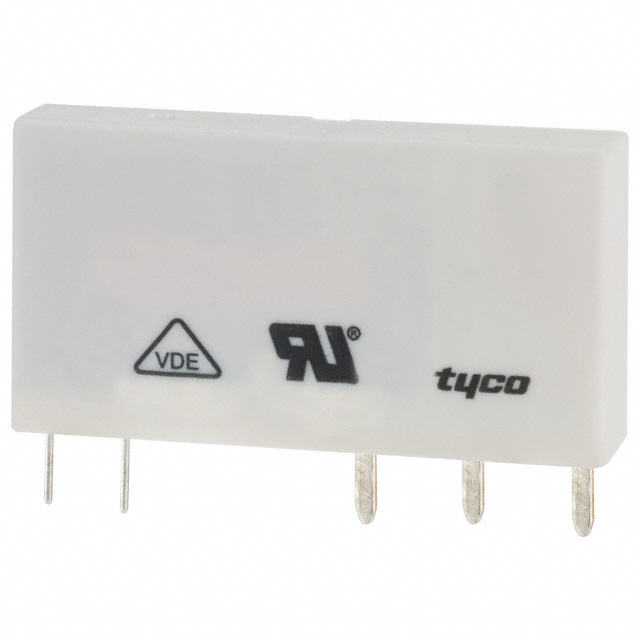

V23092 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
V23092B1905A301
| Part | Coil Resistance | Switching Voltage [Max] | Contact Form | Coil Type | Load - Max Switching | Must Release Voltage | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Release Time | Must Operate Voltage | Relay Type | Contact Material | Approval Agency | Termination Style | Operate Time | Contact Rating (Current) | Coil Voltage | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 147 Ohms | 400 VAC | SPDT (1 Form C) | Non Latching | 2400 VA | 0.25 VDC | 34 mA | 85 °C | -40 C | Socketable | 5 ms | 3.5 VDC | General Purpose | Silver Tin Oxide (AgSnO) | cURus VDE | Plug In | 12 ms | 6 A | 5 VDC | |
 TE Connectivity AMP Connectors | 848 Ohms | 400 VAC | SPDT (1 Form C) | Non Latching | 2400 VA | 0.6 VDC | 14.2 mA | 85 °C | -40 C | Through Hole | 5 ms | 8.4 VDC | General Purpose | Silver Tin Oxide (AgSnO) | cURus VDE | PC Pin | 12 ms | 6 A | 12 VDC | Sealed - Fully |
TE Connectivity AMP Connectors | 147 Ohms | 400 VAC | SPST-NO (1 Form A) | Non Latching | 2400 VA | 0.25 VDC | 34 mA | 85 °C | -40 C | Through Hole | 5 ms | 3.5 VDC | General Purpose | Silver Tin Oxide (AgSnO) | cURus VDE | PC Pin | 12 ms | 6 A | 5 VDC | |
TE Connectivity AMP Connectors | 3.4 kOhms | 400 VAC | SPST-NO (1 Form A) | Non Latching | 2400 VA | 1.2 VDC | 7 mA | 85 °C | -40 C | Through Hole | 5 ms | 16.8 VDC | General Purpose | Silver Tin Oxide (AgSnO) | cURus VDE | PC Pin | 12 ms | 6 A | 24 VDC | Sealed - Fully |
TE Connectivity AMP Connectors | 3.4 kOhms | 400 VAC | SPDT (1 Form C) | Non Latching | 2400 VA | 1.2 VDC | 7 mA | 85 °C | -40 C | Through Hole | 5 ms | 16.8 VDC | General Purpose | Silver Tin Oxide (AgSnO) | cURus VDE | PC Pin | 12 ms | 6 A | 24 VDC | Sealed - Fully |
TE Connectivity AMP Connectors | 848 Ohms | 400 VAC | SPST-NC (1 Form B) | Non Latching | 2400 VA | 0.6 VDC | 14.2 mA | 85 °C | -40 C | Through Hole | 5 ms | 8.4 VDC | General Purpose | Silver Tin Oxide (AgSnO) | cURus VDE | PC Pin | 12 ms | 6 A | 12 VDC | Sealed - Fully |
TE Connectivity AMP Connectors | 400 VAC | SPST-NO (1 Form A) | Non Latching | 2400 VA | 85 °C | -40 C | Through Hole | 5 ms | General Purpose | Silver Tin Oxide (AgSnO) | cURus VDE | PC Pin | 12 ms | 6 A | ||||||
TE Connectivity AMP Connectors | 3.4 kOhms | 400 VAC | SPDT (1 Form C) | Non Latching | 2400 VA | 1.2 VDC | 7 mA | 85 °C | -40 C | Through Hole | 5 ms | 16.8 VDC | General Purpose | Silver Tin Oxide (AgSnO) | cURus VDE | PC Pin | 12 ms | 6 A | 24 VDC | Sealed - Fully |
TE Connectivity AMP Connectors | 3.4 kOhms | 400 VAC | SPDT (1 Form C) | Non Latching | 2400 VA | 1.2 VDC | 7 mA | 85 °C | -40 C | Through Hole | 5 ms | 16.8 VDC | General Purpose | Silver Tin Oxide (AgSnO) | cURus VDE | PC Pin | 12 ms | 6 A | 24 VDC | Sealed - Fully |
TE Connectivity AMP Connectors | 147 Ohms | 400 VAC | SPST-NO (1 Form A) | Non Latching | 2400 VA | 0.25 VDC | 34 mA | 85 °C | -40 C | Through Hole | 5 ms | 3.5 VDC | General Purpose | Silver Nickel (AgNi) | cURus VDE | PC Pin | 12 ms | 6 A | 5 VDC |
