PRPN062 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

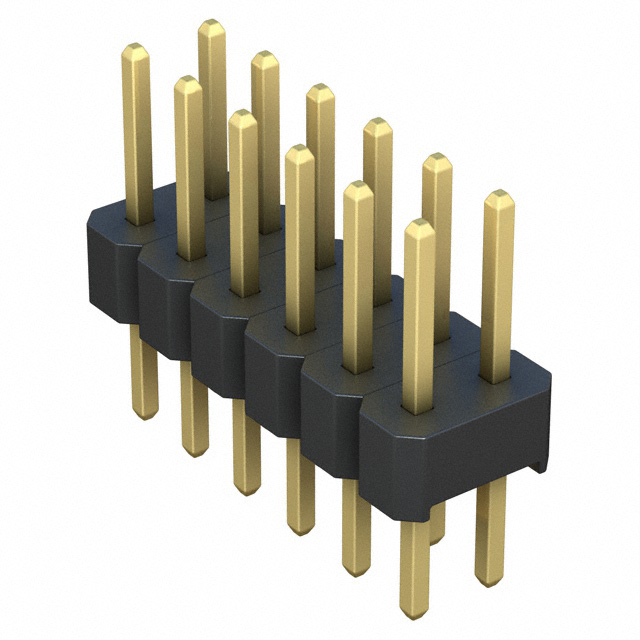

CONN HEADER VERT 12POS 2MM
| Part | Contact Finish - Mating | Contact Finish Thickness - Post | Connector Type | Contact Type | Number of Rows [custom] | Contact Length - Mating | Contact Length - Mating | Contact Shape | Overall Contact Length | Overall Contact Length | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating | Style | Contact Finish - Post | Insulation Material | Insulation Color | Number of Positions Loaded | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Shrouding | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Fastening Type | Contact Length - Post [custom] | Contact Length - Post | Pitch - Mating | Pitch - Mating | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Gold | Flash | Header | Male Pin | 2 | 4 mm | 0.157 in | Square | 8.8 mm | 0.346 in | Flash | 2 mm | 0.079 in | Board to Board Cable | Gold | Polyester | Black | All | 2 mm | 0.079 in | UL94 V-0 | Unshrouded | Brass | -40 C | 105 ░C | Through Hole | Push-Pull | 0.11 in | 2.79 mm | 0.079 " | 2 mm | Solder | 12 |
