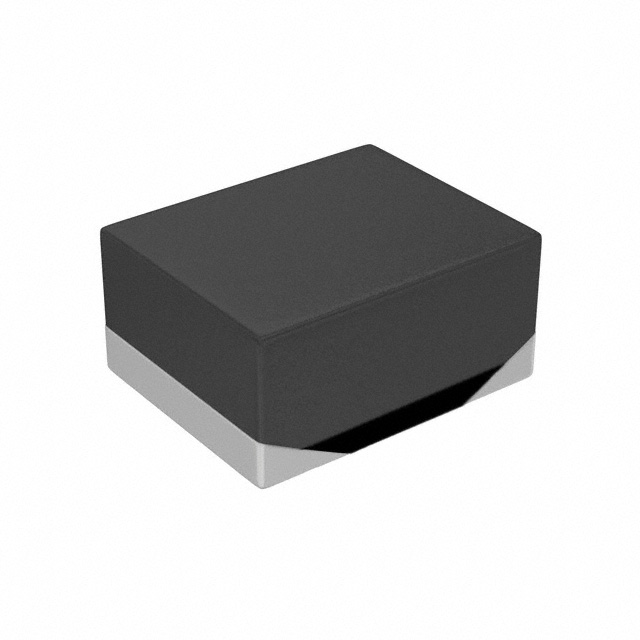

MA Series

Catalog

POWER INDUCTORS - SMD 963-LSAPB2520MKT1R5M RPLCMT PN 1008 1.5UH 65MOHMS 2.6AUR

Part	Current - Saturation (Isat)	Current Rating (Amps)	Tolerance	Supplier Device Package	Supplier Device Package	Package / Case	Package / Case	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Mounting Type	Material - Core	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Taiyo Yuden MAMK2520H1R5M	3.7 A	2.6 A	20 %	2520 Metric	1008	2520 Metric	1008	Drum Core Wirewound	2.5 mm	0.079 in	0.098 in	2 mm	125 °C	-40 C	1.5 µH	Surface Mount	Metal	2 MHz	65 mOhm	Shielded	1.2 mm	0.047 "
Taiyo Yuden MAKK2016T1R5M	1.6 A	1.65 A	20 %		0806 (2016 Metric)		0806 (2016 Metric)	Drum Core Wirewound	2 mm	0.063 "	0.079 in	1.6 mm	105 ░C	-40 C	1.5 µH	Surface Mount	Metal	2 MHz		Shielded			130 mOhm	0.039 in	1 mm
Taiyo Yuden MAMK2520TR47M	4.2 A	3.4 A	20 %	2520 Metric	1008	2520 Metric	1008	Drum Core Wirewound	2.5 mm	0.079 in	0.098 in	2 mm	105 ░C	-40 C	470 nH	Surface Mount	Metal	2 MHz		Shielded	1.2 mm	0.047 "	39 mOhm
Taiyo Yuden MAKK2520HR33M	6.2 A	4.3 A	20 %	2520 Metric	1008	2520 Metric	1008	Drum Core Wirewound	2.5 mm	0.079 in	0.098 in	2 mm	105 ░C	-40 C	330 nH	Surface Mount	Metal	2 MHz	26 mOhm	Shielded				0.039 in	1 mm
Taiyo Yuden MAMK2520T2R2M	2 A	1.9 A	20 %	2520 Metric	1008	2520 Metric	1008	Drum Core Wirewound	2.5 mm	0.079 in	0.098 in	2 mm	105 ░C	-40 C	2.2 µH	Surface Mount	Metal	2 MHz	117 mOhm	Shielded	1.2 mm	0.047 "
