327290 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

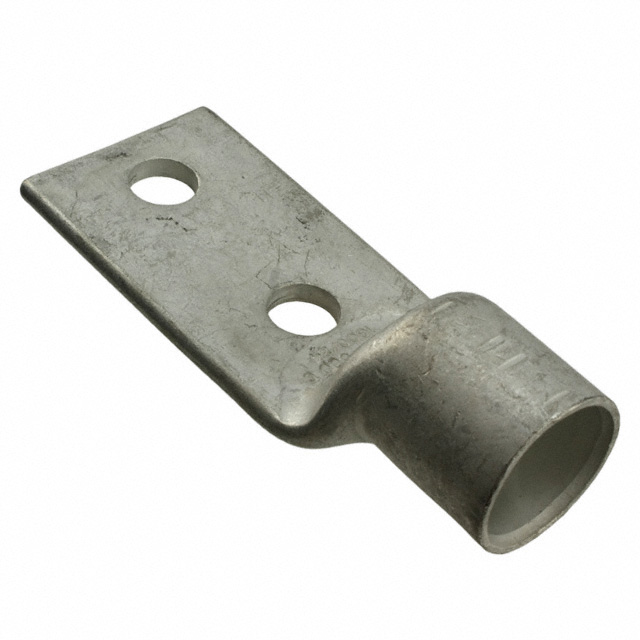

CONN TERM RECT 600 MCM #1/2
| Part | Wire Gauge | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Stud/Tab Size | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Length - Overall [x] | Length - Overall [x] | Termination | Contact Finish | Width - Outer Edges [y] | Width - Outer Edges [y] | Mounting Type | Insulation | Terminal Type | Contact Material | Tab Thickness | Tab Thickness | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 600 MCM (kcmil) | 1.075 " | 27.31 mm | 1/2 Stud | 14.27 mm | 0.562 in | 4.97 in | 126.24 mm | Barrel Crimp | Tin | 1.95 in | 49.53 mm | Free Hanging (In-Line) | Non-Insulated | Standard | Copper | 5.59 mm | 0.22 in | 1.341 in | 34.06 mm | Two Stud Holes |
