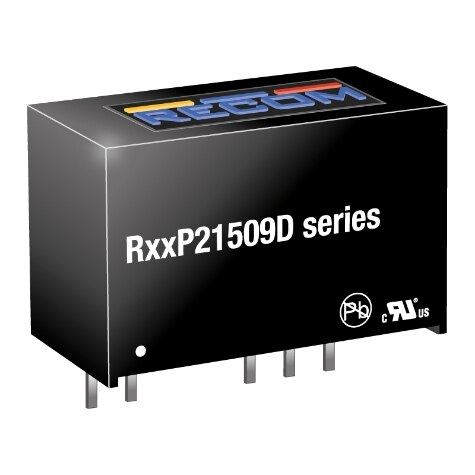

RxxP21509D Series

Isolated DC/DC Converters - Through Hole 2W 24VIN +15/-9V THT SHORT CIRCUIT PROTEC

Manufacturer: Recom Power

Catalog

Isolated DC/DC Converters - Through Hole 2W 24VIN +15/-9V THT SHORT CIRCUIT PROTEC

Catalog

Isolated DC/DC Converters - Through Hole 2W 24VIN +15/-9V THT SHORT CIRCUIT PROTEC

Part	Voltage - Output 2	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Mounting Type	Package / Case	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Applications	Power (Watts)	Type	Number of Outputs	Features
Recom Power R12P21509D	-9 V	66 mA 111 mA	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	6.4 kV	Through Hole	7-SIP Module	10.8 V	13.2 V	85 °C	-40 C	15 V	ITE (Commercial) Medical	2 W	Isolated Module	2
Recom Power R24P21509D/P	-9 V	66 mA 111 mA	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	6.4 kV	Through Hole	7-SIP Module	21.6 V	26.4 V	85 °C	-40 C	15 V	ITE (Commercial) Medical	2 W	Isolated Module	2	SCP
Recom Power R24P21509D	-9 V	66 mA 111 mA	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	6.4 kV	Through Hole	7-SIP Module	21.6 V	26.4 V	85 °C	-40 C	15 V	ITE (Commercial) Medical	2 W	Isolated Module	2
Recom Power R05P21509D/P	-9 V	66 mA 111 mA	12.5 mm	0.49 "	0.77 in	0.39 in	9.8 mm	19.5 mm	6.4 kV	Through Hole	7-SIP Module	4.5 V	5.5 V	85 °C	-40 C	15 V	ITE (Commercial) Medical	2 W	Isolated Module	2	SCP
