SSJ Series

Catalog

SWITCH SLIDE SP3T 100MA 12V

Part	Switch Travel	Operating Force	Electrical Life	Actuator Material	Mechanical Life	Mounting Type	Contact Timing	Switch Function	Voltage Rating - DC	Contact Finish	Actuator Type	Circuit	Contact Material	Termination Style	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Features

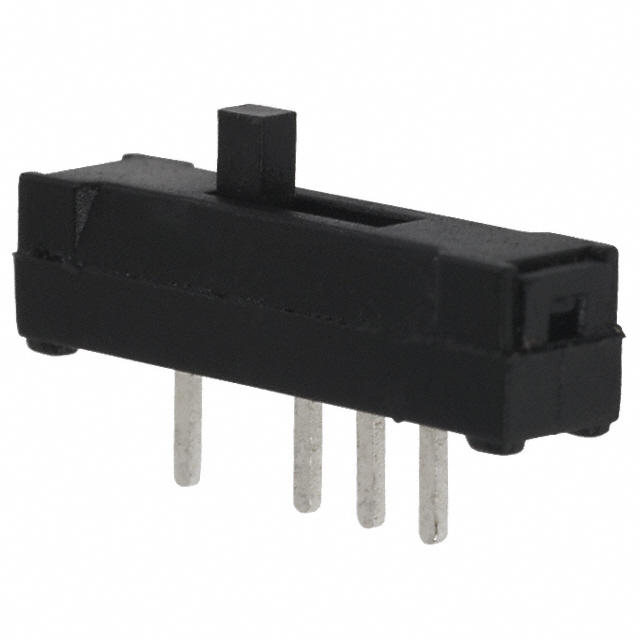

TE Connectivity AMP Connectors SSJ13	2 mm	0.25 kgf	10000 Cycles	Nylon 6/6 Polyamide (PA66)	10000 Steps	Through Hole	Shorting (MBB)	On-On-On	12 V	Silver	Standard	SP3T	Copper Alloy	PC Pin	100 mA	-20 ░C	70 °C	2 mm	Epoxy Sealed Terminals

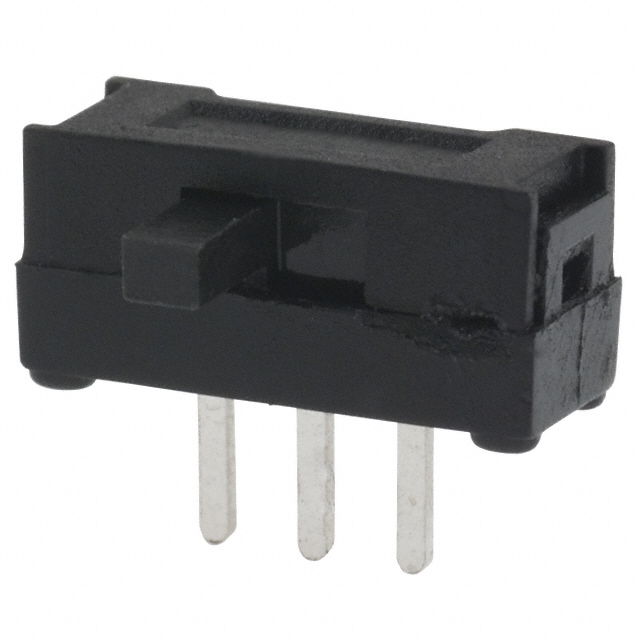

TE Connectivity AMP Connectors SSJ12R	2 mm	0.25 kgf	10000 Cycles	Nylon 6/6 Polyamide (PA66)	10000 Steps	Right Angle Through Hole	Shorting (MBB)	On-On	12 V	Silver	Standard	SPDT	Copper Alloy	PC Pin	100 mA	-20 ░C	70 °C	2.5 mm	Epoxy Sealed Terminals
TE Connectivity AMP Connectors SSJ12	2 mm	0.25 kgf	10000 Cycles	Nylon 6/6 Polyamide (PA66)	10000 Steps	Through Hole	Shorting (MBB)	On-On	12 V	Silver	Standard	SPDT	Copper Alloy	PC Pin	100 mA	-20 ░C	70 °C	2 mm	Epoxy Sealed Terminals
