MEAS EPB Series

Catalog

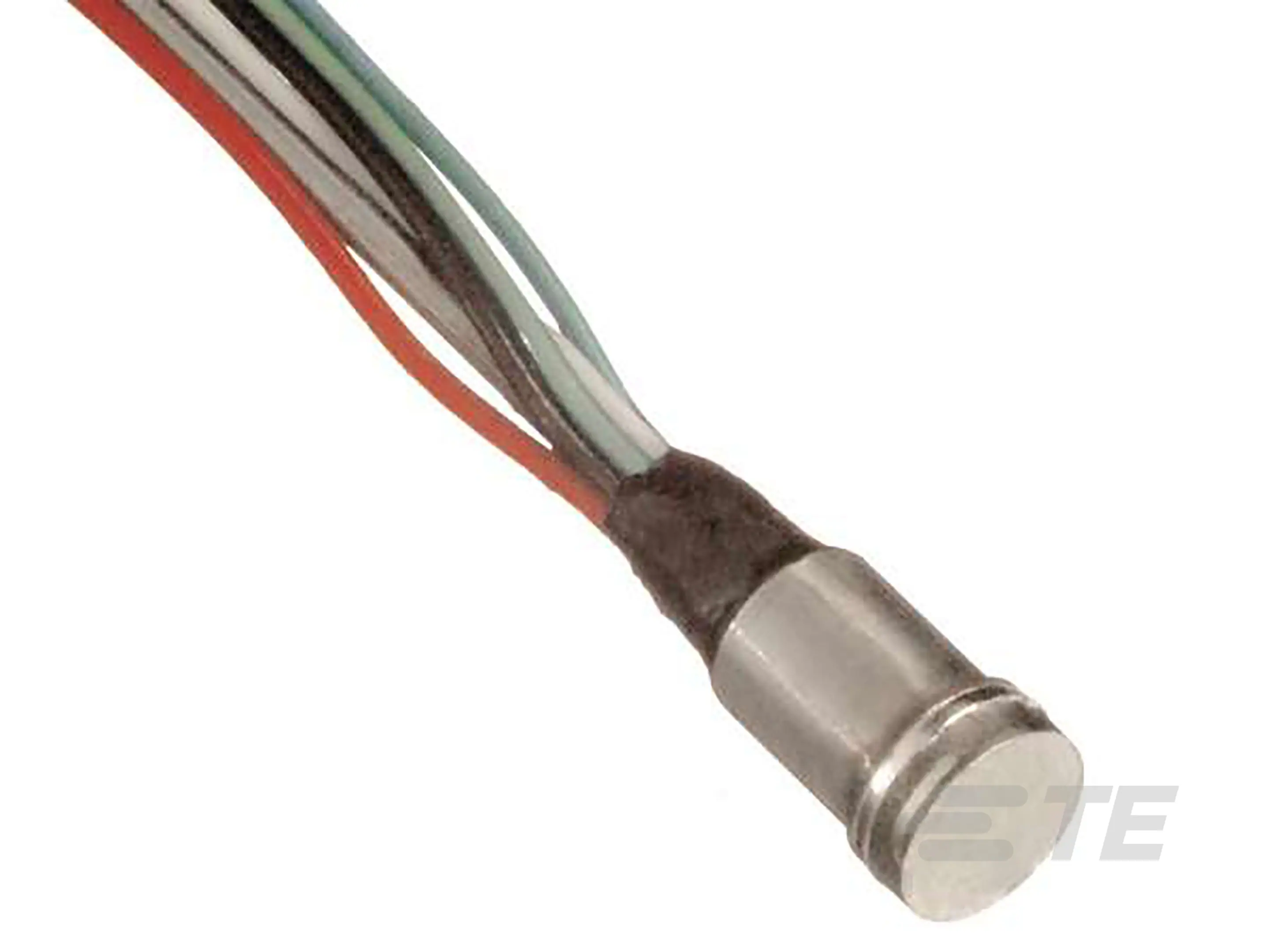

EPB-B02-0.7B

Part	Operating Pressure	Operating Pressure	Port Style	Pressure Type	Voltage - Supply	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Applications	Output Type	Output [Min]	Output [Max]	Package / Case	Maximum Pressure	Maximum Pressure	Features	Output	Maximum Pressure [Max]	Operating Pressure
TE Connectivity AMP Connectors EPB-0.7BS-C20001	0.7 bar	10.15 PSI	No Port	Sealed Gauge	10 VDC	0.5 %	120 °C	-40 C	Wire Leads	Industrial Automation	Wheatstone Bridge	0 mV	20 mV	Module	50.76 PSI	350 kPa	Temperature Compensated
TE Connectivity AMP Connectors EPB-70BA-C20001	6894.76 kPa	1000 PSI	No Port		10 VDC	0.5 %	120 °C	-40 C	Cable	Industrial Automation	Wheatstone Bridge			Cylinder		13789.51 kPa	Temperature Compensated	125 mV	2000 PSI
TE Connectivity AMP Connectors EPB-5PS-C20004	34.47 kPa	5 PSI	No Port		10 VDC	0.5 %	120 °C	-40 C		Industrial Automation	Wheatstone Bridge				50 PSI	344.74 kPa	Temperature Compensated	10 mV
TE Connectivity AMP Connectors EPB-0.35BS-C20004	5.08 PSI		No Port	Sealed Gauge	10 VDC	0.5 %	120 °C	-40 C	Wire Leads	Industrial Automation	Wheatstone Bridge	0 mV	10 mV	Module	50.76 PSI	350 kPa	Temperature Compensated			35 kPa
TE Connectivity AMP Connectors EPB-0.35BS-C20001	5.08 PSI		No Port	Sealed Gauge	10 VDC	0.5 %	120 °C	-40 C	Wire Leads	Industrial Automation	Wheatstone Bridge	0 mV	10 mV	Module	50.76 PSI	350 kPa	Temperature Compensated			35 kPa
