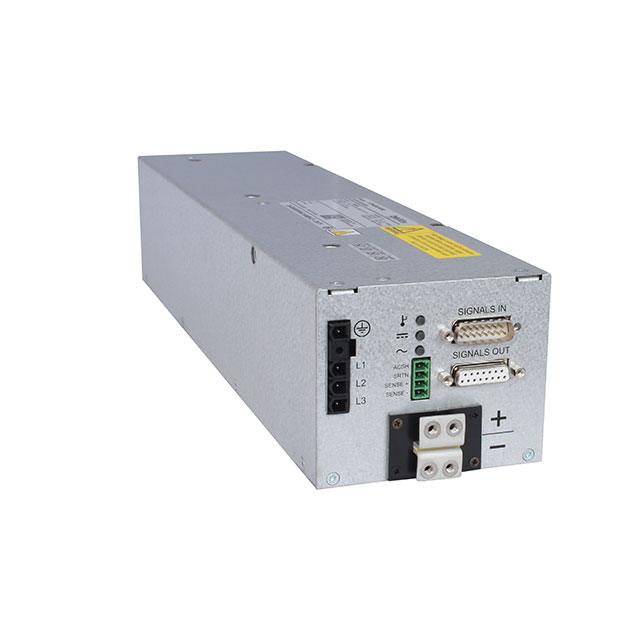

TCP4000 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
AC/DC CONVERTER 90V 4050W
| Part | Power (Watts) | Type | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Features | Current - Output 1 | Voltage - Output 1 | Voltage - Isolation | Mounting Type | Number of Outputs | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 4050 W | Front End | 94 % | 277 VAC 480 VAC | 115 VAC 200 VAC | 70 °C | 0 °C | ITE (Commercial) | Adjustable Output IP20 Load Sharing PFC | 45 A | 90 V | 1.5 kV | Rack Mount | 1 | 103 mm | 400.6 mm | 15.77 " | 84.6 mm | 3.33 in | 4.06 in |
