AD7699 Series

Catalog

16-BIT, 8-CHANNEL, 500 KSPS PULSAR ADC

Part	Features	Operating Temperature (Min)	Operating Temperature (Max)	Package Length	Package Name	Package Width	Ratio - ADC	Ratio - S/H	Reference Type	Voltage - Supply, Analog	Voltage - Supply, Digital	Package / Case	Sampling Rate (Per Second)	Number of A/D Converters	Configuration	Data Interface	Number of Inputs	Input Type	Architecture	Number of Bits	Mounting Type	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Supplied Contents	Input Range	Contents	Utilized IC / Part	Power (Typ)
Analog Devices Inc./Maxim Integrated AD7699BCPZRL7	Temperature Sensor	-40 °C	85 °C	4 mm	20-LFCSP	4 mm	1	1	External Internal	5 V	5 V	20-WFQFN Exposed Pad CSP	500 kHz	1 count	MUX-S/H-ADC	DSP SPI	8	Differential Pseudo-Differential Single Ended	SAR	16 bits	Surface Mount
Analog Devices Inc./Maxim Integrated AD7699BCBZ-RL7	Temperature Sensor	-40 °C	85 °C	2.39 mm	20-WLCSP	2.39 mm	1	1	External Internal			20-UFBGA WLCSP	500 kHz	1 count	MUX-S/H-ADC	and SPI™ DSP MICROWIRE™ QSPI™	8	Single Ended	SAR	16 bits	Surface Mount	5.5 V	4.5 V	4.5 V	5.5 V
Analog Devices Inc./Maxim Integrated AD7699BCPZ	Temperature Sensor	-40 °C	85 °C	4 mm	20-LFCSP	4 mm	1	1	External Internal	5 V	5 V	20-WFQFN Exposed Pad CSP	500 kHz	1 count	MUX-S/H-ADC	DSP SPI	8	Differential Pseudo-Differential Single Ended	SAR	16 bits	Surface Mount

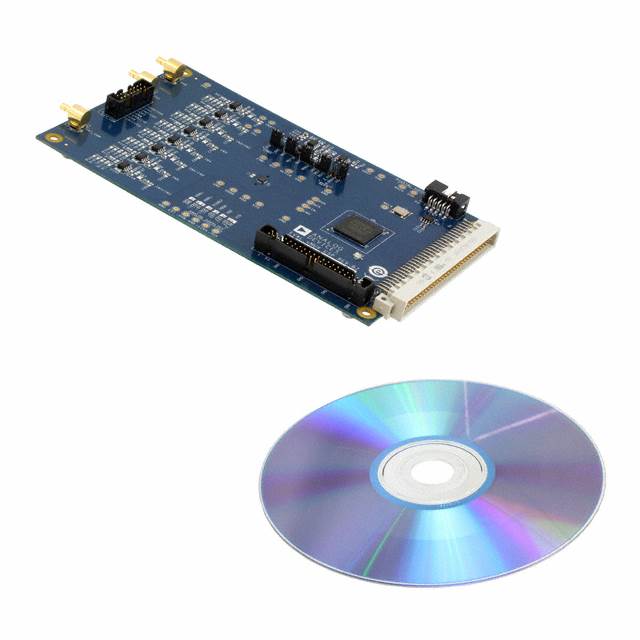

Analog Devices Inc./Maxim Integrated EVAL-AD7699EDZ													500 kHz	1 count		DSP MICROWIRE™ QSPI™ Serial SPI™				16 bits						Board(s)	0 ~ Vdd	Board	AD7699	28 mW
