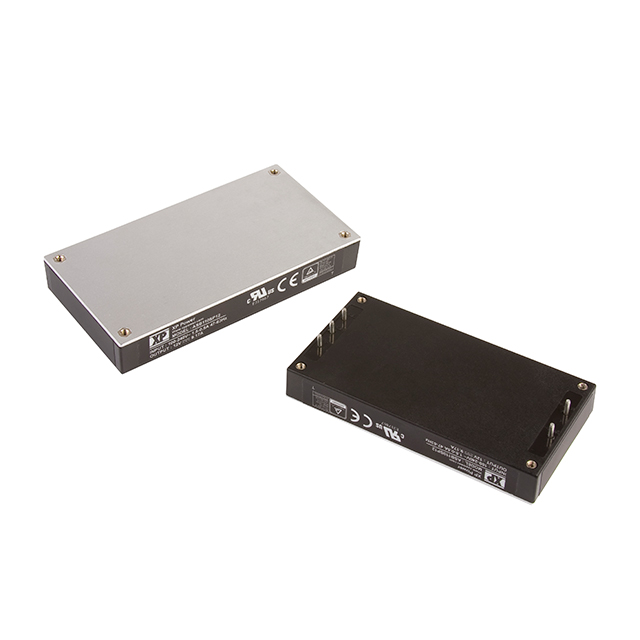

ASB110 Series

Manufacturer: XP Power

Catalog

MODULAR POWER SUPPLIES PSU, 110W, BASEPLATE COOLED

Part	Weight	Weight	Line Regulation	Load Regulation	Package / Case	Mounting Type	Efficiency	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Standard Number	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Type	Current - Output (Max) [Max]	Power (Watts)	Applications	Number of Outputs
XP Power ASB110PS24	231.33 g	0.51 lb	0.5 %	0.5 %	5-DIP Module	Through Hole	91 %	24 V	-40 °C	85 °C	CB CE cURus TUVgs	62368-1	4.6 "	61 mm	0.67 in	2.4 in	116.8 mm	17 mm	Universal Input	Enclosed	4.58 A	110 W	ITE (Commercial)	1
XP Power ASB110PS48	231.33 g	0.51 lb	0.5 %	0.5 %	5-DIP Module	Through Hole	90.5 %	48 V	-40 °C	85 °C	CB CE cURus TUVgs	62368-1	4.6 "	61 mm	0.67 in	2.4 in	116.8 mm	17 mm	Universal Input	Enclosed		110 W	ITE (Commercial)	1
XP Power ASB110PS12	231.33 g	0.51 lb	0.5 %	0.5 %	5-DIP Module	Through Hole	90 %	12 V	-40 °C	85 °C	CB CE cURus TUVgs	62368-1	4.6 "	61 mm	0.67 in	2.4 in	116.8 mm	17 mm	Universal Input	Enclosed	9.17 A	110 W	ITE (Commercial)	1
