Schaffner FN9274 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

AC POWER ENTRY MODULES 10A 1.3MH 0.22UF FAST-ON REAR MNT MED

Part	Approval Agency	Mounting Type	Connector Style	Number of Positions	Filter Type	Ingress Protection	Material Flammability Rating	Features	Termination	Termination	Termination	Current Rating - Filter	Connector Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
TE Connectivity AMP Connectors FN9274MB-10-05	CE CQC CSA ENEC UL	Flange Panel Mount	IEC 320-C18	2	Filtered (EMI RFI) - Commercial Medical	IP40	UL94 V-0	Rear Side Mount	6.3 mm	Quick Connect	0.25 "	10 A	Receptacle Male Blades
TE Connectivity AMP Connectors FN9274MB-10-07	CE CQC CSA ENEC UL	Flange Panel Mount	IEC 320-C18	2	Filtered (EMI RFI) - Commercial Medical	IP40	UL94 V-0	Rear Side Mount		Wire Leads		10 A	Receptacle Male Blades
TE Connectivity AMP Connectors FN9274S1B-6-07	CE CQC CSA ENEC UL	Panel Mount Snap-In	IEC 320-C18	2	Filtered (EMI RFI) - Commercial Medical	IP40	UL94 V-0			Wire Leads		6 A	Receptacle Male Blades	2.5 mm	0.039 in	0.098 in	1 mm	23.2 mm	28.4 mm
TE Connectivity AMP Connectors FN9274S1B-4-07	CE CQC CSA ENEC UL	Panel Mount Snap-In	IEC 320-C18	2	Filtered (EMI RFI) - Commercial Medical	IP40	UL94 V-0			Wire Leads		4 A	Receptacle Male Blades	2.5 mm	0.039 in	0.098 in	1 mm	23.2 mm	28.4 mm
TE Connectivity AMP Connectors FN9274B-1-07	CE CQC CSA ENEC UL	Flange Panel Mount	IEC 320-C18	2	Filtered (EMI RFI) - Commercial Medical	IP40	UL94 V-0	Front Side Mount		Wire Leads		1 A	Receptacle Male Blades
TE Connectivity AMP Connectors FN9274B-4-05	CE CQC CSA ENEC UL	Flange Panel Mount	IEC 320-C18	2	Filtered (EMI RFI) - Commercial Medical	IP40	UL94 V-0	Front Side Mount	6.3 mm	Quick Connect	0.25 "	4 A	Receptacle Male Blades

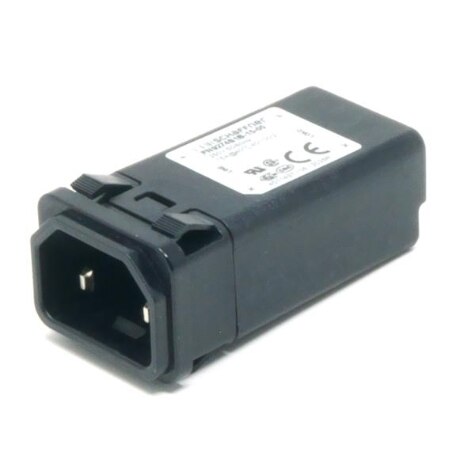

TE Connectivity AMP Connectors FN9274S1B-6-05	CE CQC CSA ENEC UL	Panel Mount Snap-In	IEC 320-C18	2	Filtered (EMI RFI) - Commercial Medical	IP40	UL94 V-0		6.3 mm	Quick Connect	0.25 "	6 A	Receptacle Male Blades	2.5 mm	0.039 in	0.098 in	1 mm	23.2 mm	28.4 mm
TE Connectivity AMP Connectors FN9274B-2-05	CE CQC CSA ENEC UL	Flange Panel Mount	IEC 320-C18	2	Filtered (EMI RFI) - Commercial Medical	IP40	UL94 V-0	Front Side Mount	6.3 mm	Quick Connect	0.25 "	2 A	Receptacle Male Blades
TE Connectivity AMP Connectors FN9274S1B-10-05	CE CQC CSA ENEC UL	Panel Mount Snap-In	IEC 320-C18	2	Filtered (EMI RFI) - Commercial Medical	IP40	UL94 V-0		6.3 mm	Quick Connect	0.25 "	10 A	Receptacle Male Blades	2.5 mm	0.039 in	0.098 in	1 mm	23.2 mm	28.4 mm
TE Connectivity AMP Connectors FN9274S1B-15-05	CE CQC CSA ENEC UL	Panel Mount Snap-In	IEC 320-C18	2	Filtered (EMI RFI) - Commercial Medical	IP40	UL94 V-0		6.3 mm	Quick Connect	0.25 "	15 A	Receptacle Male Blades	2.5 mm	0.039 in	0.098 in	1 mm	23.2 mm	28.4 mm
