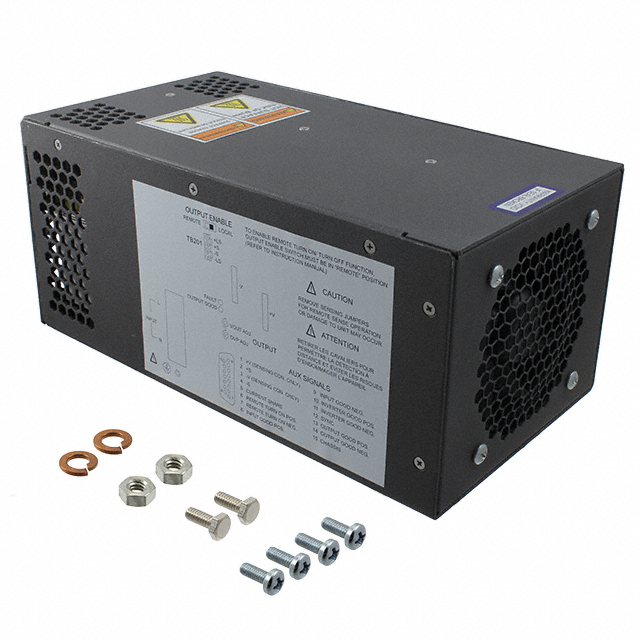

LZSA-1500 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 1.51 KW, 24 V, 63 A
| Part | Voltage - Output 1 | Mounting Type | Features | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Isolation | Applications | Current - Output 1 | Type | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Approval Agency | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 24 V | Chassis Mount | Adjustable Output DC Input Capable Load Sharing PFC Remote On/Off Remote Sense Universal Input | 1 | 265 VAC | 85 VAC | 3000 V | ITE (Commercial) | 63 A | Conformal Coated Enclosed | 84 % | -40 °C | 71 °C | 4.75 " | 142.7 mm | 266.7 mm | 5.62 " | 266.7 mm | 120.7 mm | CE | 1500 W |
