SM20B-XS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

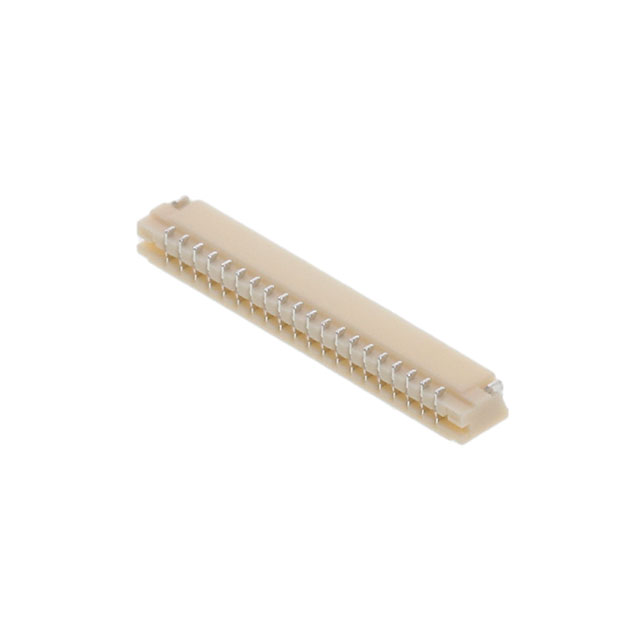

CONN HEADER SMD R/A 20POS 0.6MM
| Part | Applications | Pitch - Mating | Pitch - Mating | Connector Type | Contact Type | Contact Shape | Number of Rows | Insulation Color | Voltage Rating | Features | Style | Mounting Type | Shrouding | Number of Positions | Insulation Height [custom] | Insulation Height [custom] | Material Flammability Rating | Contact Material | Termination | Insulation Material | Number of Positions Loaded | Current Rating (Amps) | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | General Purpose | 0.6 mm | 0.024 in | Header | Outer Shroud Contact | Rectangular | 1 | Natural | 30 VDC | Solder Retention | Board to Cable/Wire | Right Angle Surface Mount | Shrouded - 4 Wall | 20 | 1.45 mm | 0.057 in | UL94 V-0 | Copper Alloy | Solder | Nylon Polyamide (PA) | All | 0.2 A | Tin | 85 °C | -25 °C | Friction Lock |
