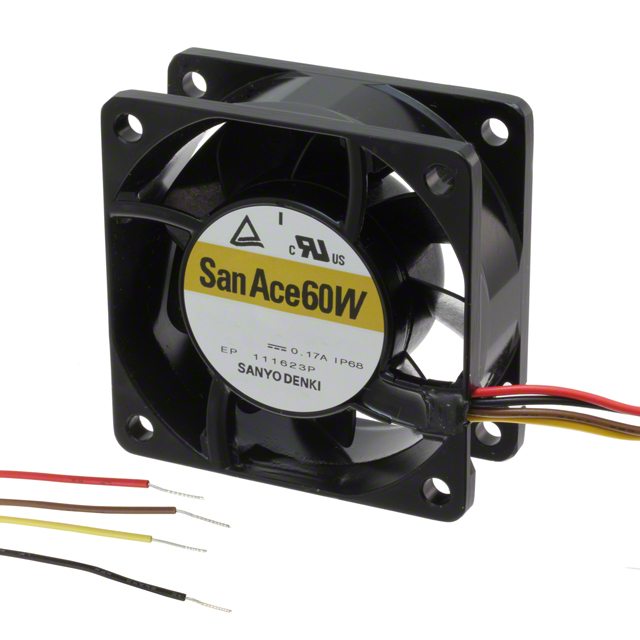

9WL0612 Series

Catalog

FAN AXIAL 60X25MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)	Noise	Approval Agency	Termination	RPM	Voltage - Rated	Width [y]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Bearing Type	Size / Dimension [z]	Size / Dimension [x]	Ingress Protection	Weight [custom]	Weight [custom]	Fan Type	Static Pressure	Static Pressure	Power (Watts)	Weight	Weight
Sanyo Denki America Inc. 9WL0612J4D001	10.8 VDC	13.2 VDC	Aluminum	Plastic	180000 Hrs	390 mA	47 dB	CSA TUV UL	3 Wire Leads	8650 RPM	12 VDC	25 mm	Locked Rotor Sensor	-20 ░C	70 °C	38.8 CFM	1.09 m³/min	Ball	60 mm	60 mm	IP68 - Dust Tight Waterproof	0.265 lb	120.2 g	Tubeaxial	181.8 Pa	0.73 in H2O
Sanyo Denki America Inc. 9WL0612S4D001	10.8 VDC	13.2 VDC	Aluminum	Plastic	180000 Hrs	0.67 A	53 dB	CSA TUV UL	3 Wire Leads	11000 RPM	12 VDC	25 mm	Locked Rotor Sensor	-20 ░C	70 °C	49.4 CFM	1.38 m³/min	Ball	60 mm	60 mm	IP68 - Dust Tight Waterproof	0.265 lb	120.2 g	Tubeaxial	299.9 Pa	1.204 in H2O	8.04 W
Sanyo Denki America Inc. 9WL0612P4J001	10.8 VDC	13.2 VDC	Aluminum	Plastic	180000 Hrs	390 mA	47 dB	CSA TUV UL	4 Wire Leads	8650 RPM	12 VDC	25 mm	PWM Control Speed Sensor (Tach)	-20 ░C	70 °C	38.8 CFM	1.09 m³/min	Ball	60 mm	60 mm	IP68 - Dust Tight Waterproof			Tubeaxial	181.8 Pa	0.73 in H2O		110.22 g	0.243 lb
Sanyo Denki America Inc. 9WL0612S4002	10.8 VDC	13.2 VDC	Aluminum	Plastic	180000 Hrs	0.67 A	53 dB	CSA TUV UL	2 Wire Leads	11000 RPM	12 VDC	25 mm		-20 ░C	70 °C	49.4 CFM	1.38 m³/min	Ball	60 mm	60 mm	IP68 - Dust Tight Waterproof	0.265 lb	120.2 g	Tubeaxial	299.9 Pa	1.204 in H2O	8.04 W
Sanyo Denki America Inc. 9WL0612J4002	10.8 VDC	13.2 VDC	Aluminum	Plastic	180000 Hrs	390 mA	47 dB	CSA TUV UL	2 Wire Leads	8650 RPM	12 VDC	25 mm		-20 ░C	70 °C	38.8 CFM	1.09 m³/min	Ball	60 mm	60 mm	IP68 - Dust Tight Waterproof	0.265 lb	120.2 g	Tubeaxial	181.8 Pa	0.73 in H2O
