EN3P6M Series

Catalog

CONN RCPT MALE 6POS GOLD SOLDER

Part	Applications	Number of Positions	Primary Material	Orientation	Mounting Feature	Color	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Termination	Connector Type	Contact Finish - Mating	Current Rating (Amps)	Shielding	Contact Material	Ingress Protection	Fastening Type	Voltage Rating	Material Flammability Rating

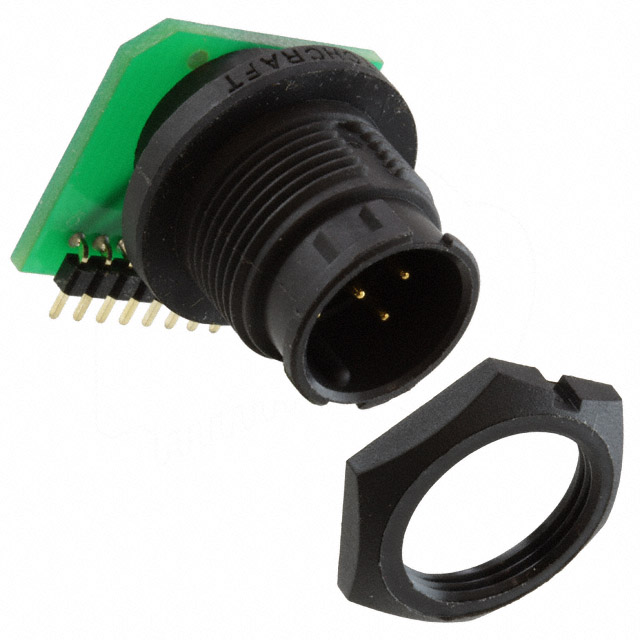

Switchcraft Inc. EN3P6MRAPCBN	General Purpose Instrumentation Marine Medical	6	Plastic	Keyed	Bulkhead - Front Side Nut	Black	Panel Mount Right Angle Through Hole	65 °C	-40 °C	Elastomer	Circuit Board Solder	Male Pins Receptacle	Gold	4 A	Unshielded	Copper Alloy	IP66/IP68	Bayonet Lock	250 VAC	UL94 V-0

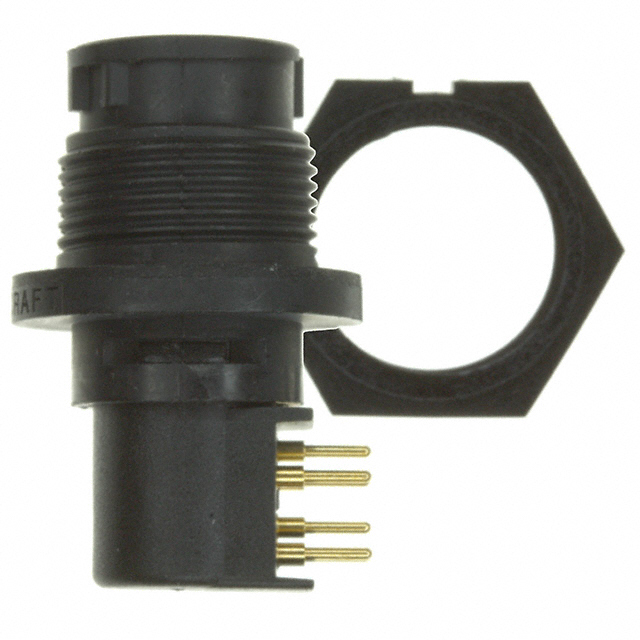

Switchcraft Inc. EN3P6MRAPCX	General Purpose Instrumentation Marine Medical	6	Plastic	Keyed	Bulkhead - Front Side Nut	Black	Panel Mount Right Angle Through Hole	65 °C	-40 °C	Elastomer	Solder	Male Pins Receptacle	Gold	4 A	Unshielded	Copper Alloy	IP66/IP68	Bayonet Lock	250 VAC	UL94 V-0

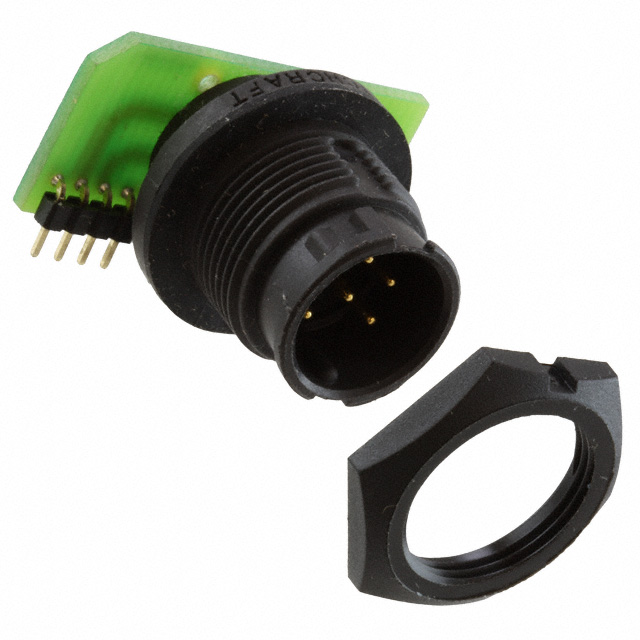

Switchcraft Inc. EN3P6MRAPCBW	General Purpose Instrumentation Marine Medical	6	Plastic	Keyed	Bulkhead - Front Side Nut	Black	Panel Mount Right Angle Through Hole	65 °C	-40 °C	Elastomer	Circuit Board Solder	Male Pins Receptacle	Gold	4 A	Unshielded	Copper Alloy	IP66/IP68	Bayonet Lock	250 VAC	UL94 V-0

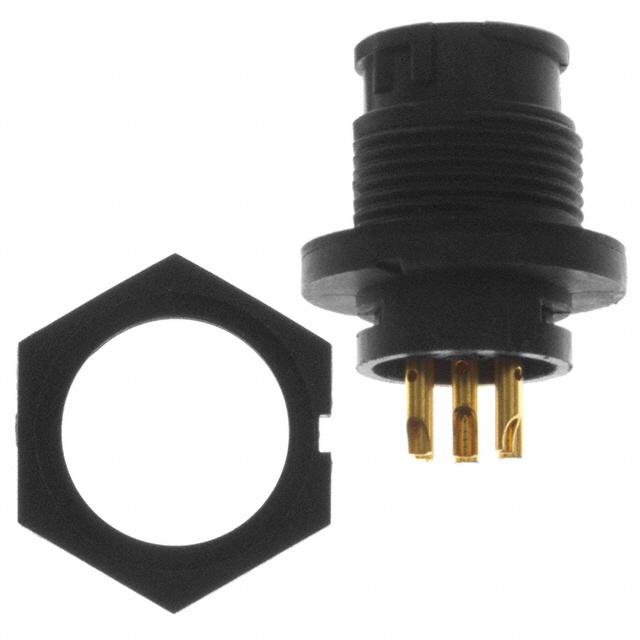

Switchcraft Inc. EN3P6MX	General Purpose Instrumentation Marine Medical	6	Plastic	Keyed	Bulkhead - Front Side Nut	Black		65 °C	-40 °C	Elastomer		Male Pins Receptacle	Gold	7.5 A	Unshielded	Copper Alloy	IP66/IP68	Bayonet Lock	250 VAC	UL94 V-0

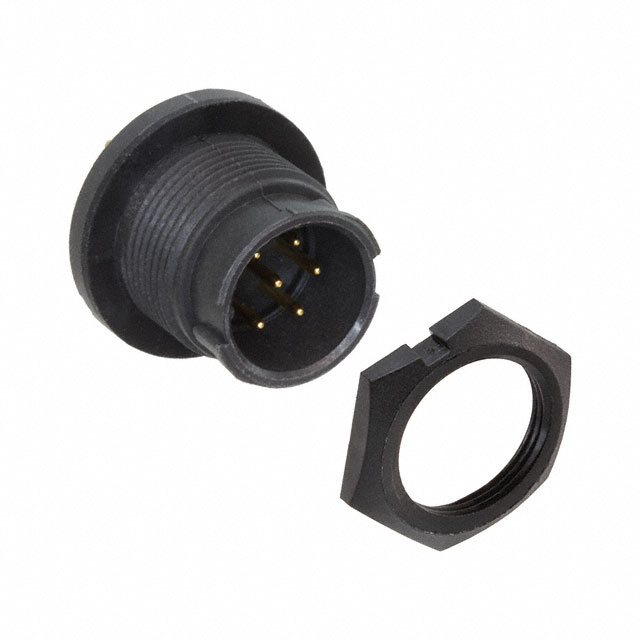

Switchcraft Inc. EN3P6MPX	General Purpose Instrumentation Marine Medical	6	Plastic	Keyed	Bulkhead - Front Side Nut	Black	Panel Mount Through Hole	65 °C	-40 °C	Elastomer	Solder	Male Pins Receptacle	Gold	7.5 A	Unshielded	Copper Alloy	IP66/IP68	Bayonet Lock	250 VAC	UL94 V-0
