M13176 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

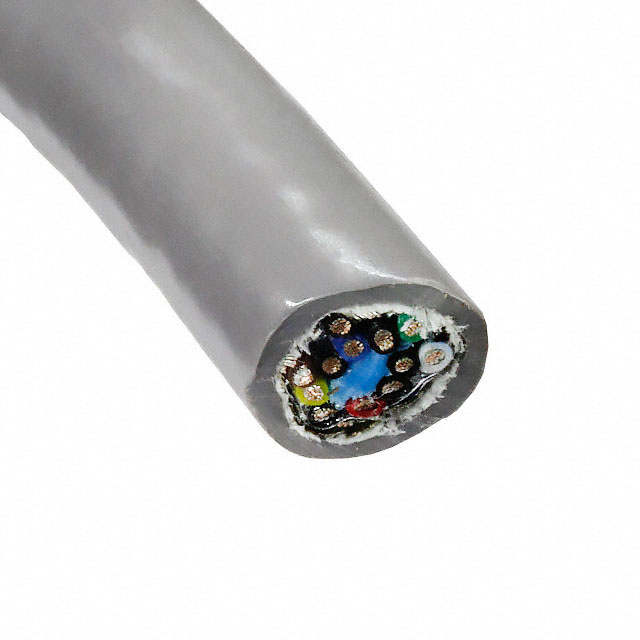

MULTI-PAIR 12COND 18AWG
| Part | Shield Material | Shield Coverage | Jacket Color | Jacket (Insulation) Material | Conductor Material | Features | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Shield Type | Length | Length | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Voltage | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Slate | Poly-Vinyl Chloride (PVC) | Copper Tinned | Drain Wire | Polyethylene (PE) | 16 | 30 AWG | 12 | Foil | 304.8 m | 1000 ft | UL Style 2919 | 1.194 mm | 0.047 in | 80 °C | -20 ░C | 0.541 in | 13.74 mm | 18 AWG | 300 VDC | Multi-Pair |
