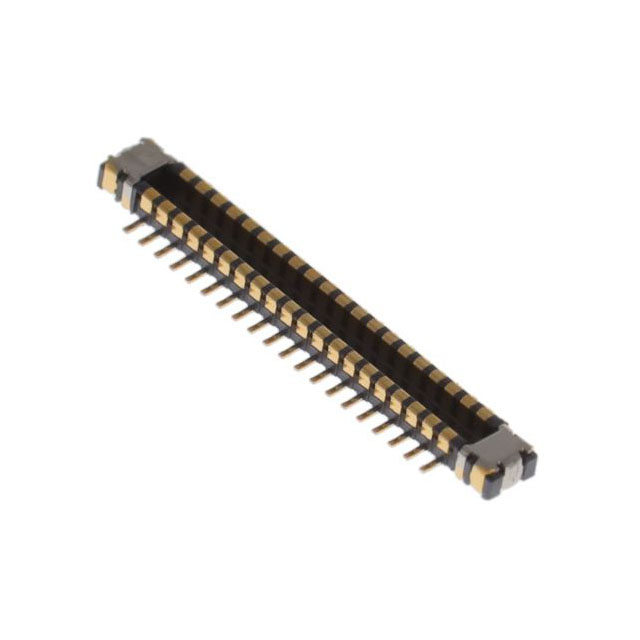

WP27D-P0 Series

Catalog

24 POS PLUG, HYBRID WITH POWER C

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Contact Finish	Mounting Type	Mated Stacking Heights	Pitch	Pitch	Features	Number of Rows [custom]	Connector Type	Number of Positions [custom]

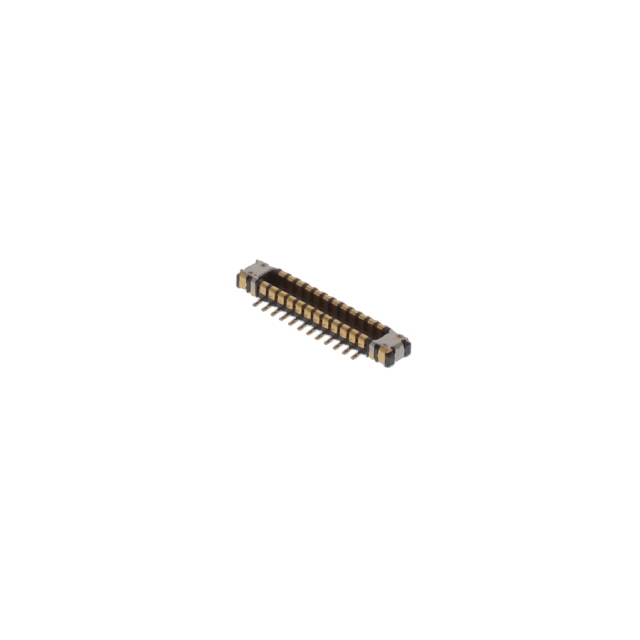

JAE Electronics WP27D-P024VA3-R15000	24	0.1 Ám	4 Áin	0.57 mm	0.022 in	Gold	Surface Mount	0.7 mm	0.014 in	0.35 mm	Solder Retention	2	Plug Outer Shroud Contacts

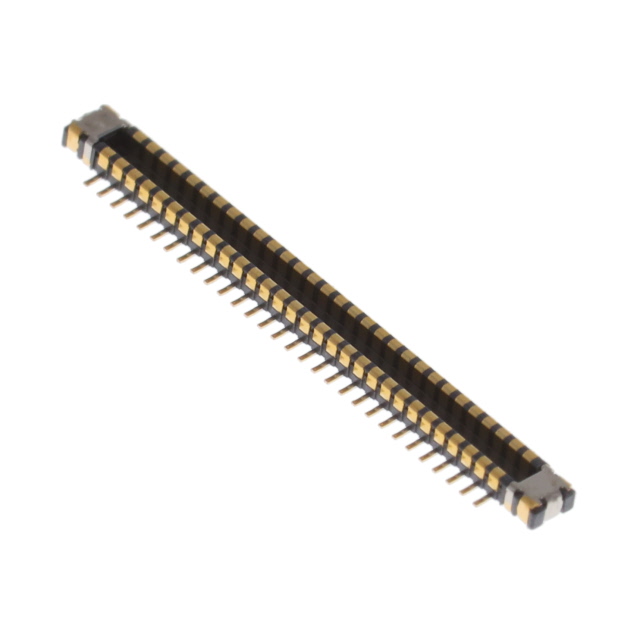

JAE Electronics WP27D-P060VA3-R15000	60	0.1 Ám	4 Áin	0.57 mm	0.022 in	Gold	Surface Mount	0.7 mm	0.014 in	0.35 mm	Solder Retention	2	Plug Outer Shroud Contacts
JAE Electronics WP27D-P034VA3-R15000		0.1 Ám	4 Áin	0.57 mm	0.022 in	Gold	Surface Mount	0.7 mm	0.014 in	0.35 mm	Solder Retention	2	Plug Outer Shroud Contacts	34

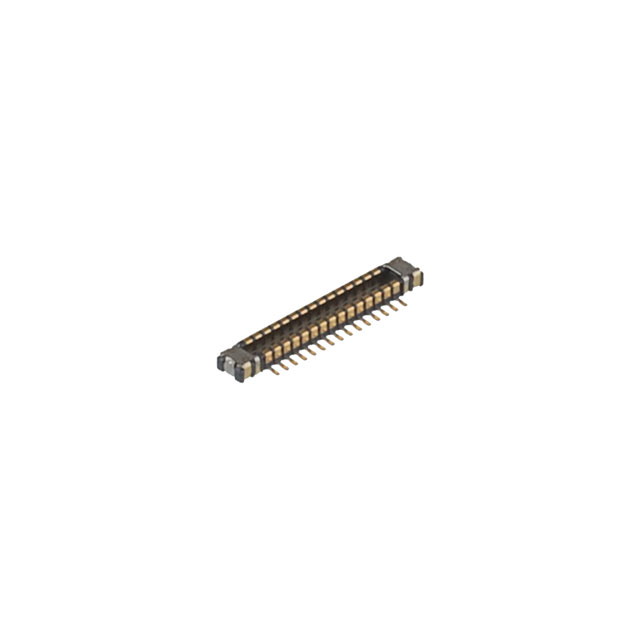

JAE Electronics WP27D-P030VA3-R15000	30	0.1 Ám	4 Áin	0.57 mm	0.022 in	Gold	Surface Mount	0.7 mm	0.014 in	0.35 mm	Solder Retention	2	Plug Outer Shroud Contacts
JAE Electronics WP27D-P038VA1-R15000	38	0.1 Ám	4 Áin	0.57 mm	0.022 in	Gold	Surface Mount	0.7 mm	0.014 in	0.35 mm	Solder Retention	2	Plug Outer Shroud Contacts
JAE Electronics WP27D-P040VA3-R15000	40	0.1 Ám	4 Áin	0.57 mm	0.022 in	Gold	Surface Mount	0.7 mm	0.014 in	0.35 mm	Solder Retention	2	Plug Outer Shroud Contacts
JAE Electronics WP27D-P030VA1-R15000	30	0.1 Ám	4 Áin	0.57 mm	0.022 in	Gold	Surface Mount	0.7 mm	0.014 in	0.35 mm	Solder Retention	2	Plug Outer Shroud Contacts

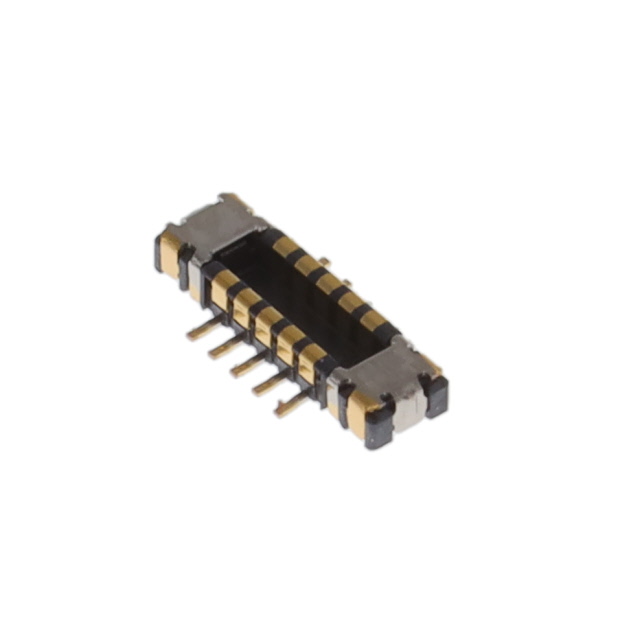

JAE Electronics WP27D-P010VA3-R15000	10	0.1 Ám	4 Áin	0.57 mm	0.022 in	Gold	Surface Mount	0.7 mm	0.014 in	0.35 mm	Solder Retention	2	Plug Outer Shroud Contacts
