2383945 Series

Catalog

TERMI-BLOK SMD MOUNT 180_7P_3.81

Part	Clamp Material - Plating	Voltage	Pitch [x]	Pitch [x]	Features	Number of Levels	Housing Material	Screw Thread	Wire Gauge [Max]	Wire Gauge [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Mounting Type	Wire Termination	Mating Orientation	Color	Screw Material - Plating	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Current

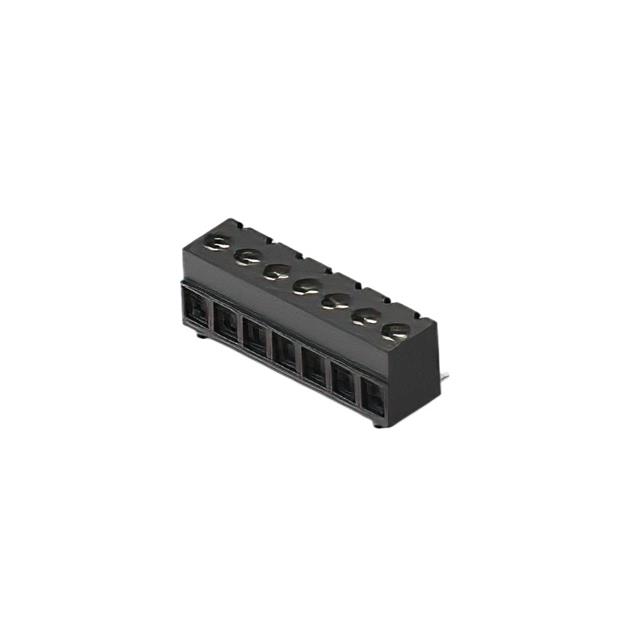

TE Connectivity Raychem Cable Protection 2383945-7	Copper Alloy - Nickel Plated	300 V	0.15 in	3.81 mm	Board Guide	1	Polyamide (PA) Nylon	M2	28 AWG	16 AWG	-40 °C	105 ░C	7	Surface Mount	Screw - Rising Cage Clamp	Horizontal with Board	Black	Copper Alloy - Nickel Plated	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	12 A
