H11D Series

Catalog

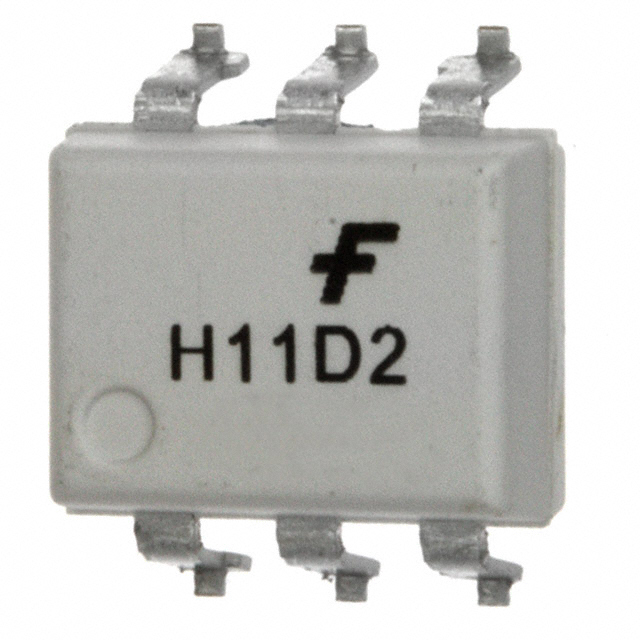

OPTOISO 7.5KV TRANS W/BASE 6DIP

Part	Turn On / Turn Off Time (Typ)	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Vce Saturation (Max) [Max]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Number of Channels	Mounting Type	Current - Output / Channel	Current - DC Forward (If) (Max) [Max]	Voltage - Output (Max) [Max]	Current Transfer Ratio (Min) [Min]	Package / Case	Package / Case	Package / Case	Input Type	Package / Case
ON Semiconductor H11D2VM	5 µs	7500 Vpk	100 °C	-40 °C	400 mV	6-DIP	1.15 V	1	Through Hole	100 mA	80 mA	300 V	20 %	6-DIP	0.3 in	7.62 mm	DC
ON Semiconductor H11D23S	5 µs	5300 Vrms	100 °C	-55 °C	400 mV	6-SMD	1.15 V	1	Surface Mount	100 mA	80 mA	300 V	20 %	6-SMD Gull Wing			DC
ON Semiconductor H11D2	5 µs	5300 Vrms	100 °C	-55 °C	400 mV	6-DIP	1.15 V	1	Through Hole	100 mA	80 mA	300 V	20 %	6-DIP	0.3 in	7.62 mm	DC
ON Semiconductor H11D1300W	5 µs	5300 Vrms	100 °C	-55 °C	400 mV	6-DIP	1.15 V	1	Through Hole	100 mA	80 mA	300 V	20 %	6-DIP		10.16 mm	DC	10.16 mm
ON Semiconductor H11D1300	5 µs	5300 Vrms	100 °C	-55 °C	400 mV	6-DIP	1.15 V	1	Through Hole	100 mA	80 mA	300 V	20 %	6-DIP	0.3 in	7.62 mm	DC
ON Semiconductor H11D2SR2VM	5 µs	7500 Vpk	100 °C	-40 °C	400 mV	6-SMD	1.15 V	1	Surface Mount	100 mA	80 mA	300 V	20 %	6-SMD Gull Wing			DC
ON Semiconductor H11D2300	5 µs	5300 Vrms	100 °C	-55 °C	400 mV	6-DIP	1.15 V	1	Through Hole	100 mA	80 mA	300 V	20 %	6-DIP	0.3 in	7.62 mm	DC
ON Semiconductor H11D1300	5 µs	5300 Vrms	100 °C	-55 °C	400 mV	6-DIP	1.15 V	1	Through Hole	100 mA	80 mA	300 V	20 %	6-DIP	0.3 in	7.62 mm	DC
ON Semiconductor H11D1SVM	5 µs	4170 Vrms	100 °C	-40 °C	400 mV	6-SMD	1.15 V	1	Surface Mount	100 mA	80 mA	300 V	20 %	6-SMD Gull Wing			DC
ON Semiconductor H11D2SR2M	5 µs	7500 Vpk	100 °C	-40 °C	400 mV	6-SMD	1.15 V	1	Surface Mount	100 mA	80 mA	300 V	20 %	6-SMD Gull Wing			DC
