LPPB082 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

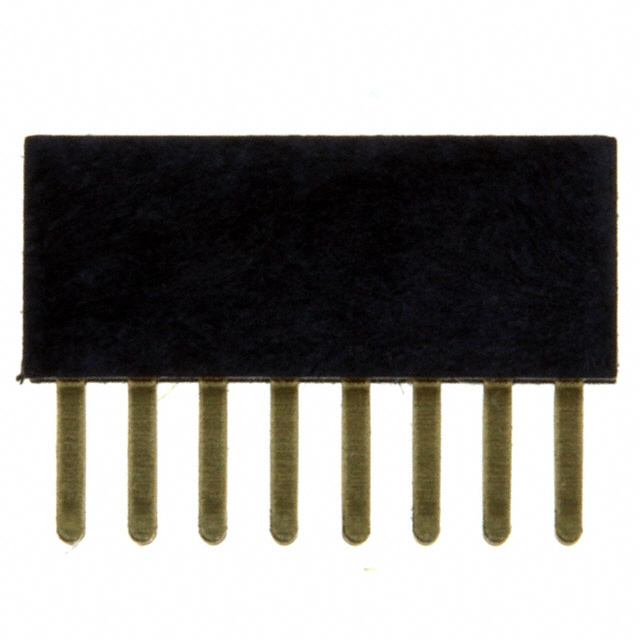

CONN HDR 16POS 0.05 GOLD PCB
| Part | Insulation Material | Contact Material | Contact Shape | Contact Finish Thickness - Post | Contact Finish - Mating | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating | Termination | Connector Type | Contact Finish - Post | Number of Rows [custom] | Contact Type | Insulation Color | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Mounting Type | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Liquid Crystal Polymer (LCP) | Phosphor Bronze | Square | Flash | Gold | Push-Pull | 125 °C | -40 C | 16 | Flash | 0.05 in | 1.27 mm | Solder | Header | Gold | 2 | Female Socket | Black | 1.27 mm | 0.05 in | 0.177 in | 4.5 mm | UL94 V-0 | 0.118 in | 3 mm | Through Hole | All |
