VEL36 Series

Manufacturer: XP Power

Catalog

AC/DC WALL MOUNT ADAPTER 15V 36W

Part	Weight	Weight	No Load Power Consumption	Input Type	Input Connector	Applications	Form	Cord Length	Cord Length	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]	Standard Number	Approval Agency	Polarization	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Power (Watts)	Region Utilized	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Max]	Efficiency	Weight [custom]	Weight [custom]

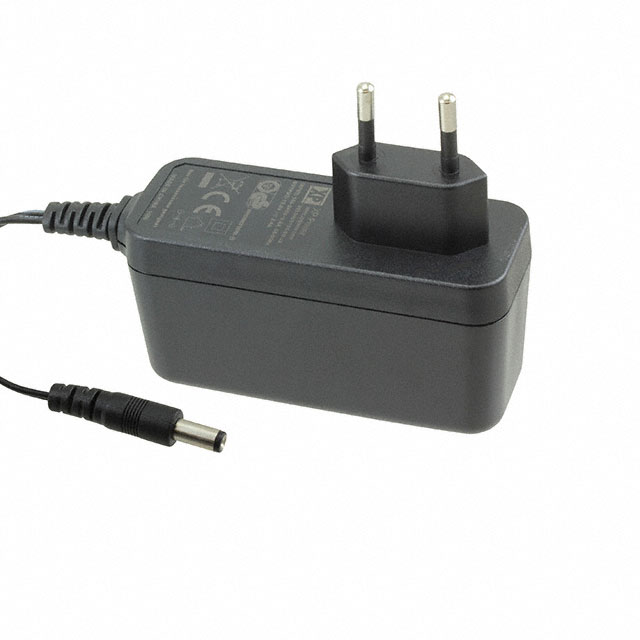

XP Power VEL36US150-EU-JA	155.13 g	0.342 lb	75 mW	Fixed Blade	CEE 7/16	ITE (Commercial)	Wall Mount	1.5 m	59 in	2.1 mm	5.5 mm	Barrel Plug	12 mm	62368-1	CB CCC	Positive Center	15 V	264 VAC	90 VAC	2.4 A	36 W	Europe	3.7 in	46.6 mm	94 mm	1.38 in	35 mm	1.83 in	60 °C	CoC Tier 2 Level VI
XP Power VEL36US150-UK-JA			75 mW	Fixed Blade	GB 1002	ITE (Commercial)	Wall Mount	1.5 m	59 in	2.1 mm	5.5 mm	Barrel Plug	12 mm	62368-1	CB CCC	Positive Center	15 V	264 VAC	90 VAC	2.4 A	36 W	United Kingdom	3.7 in	46.6 mm	94 mm	1.38 in	35 mm	1.83 in	60 °C	CoC Tier 2 Level VI	0.324 lb	146.96 g

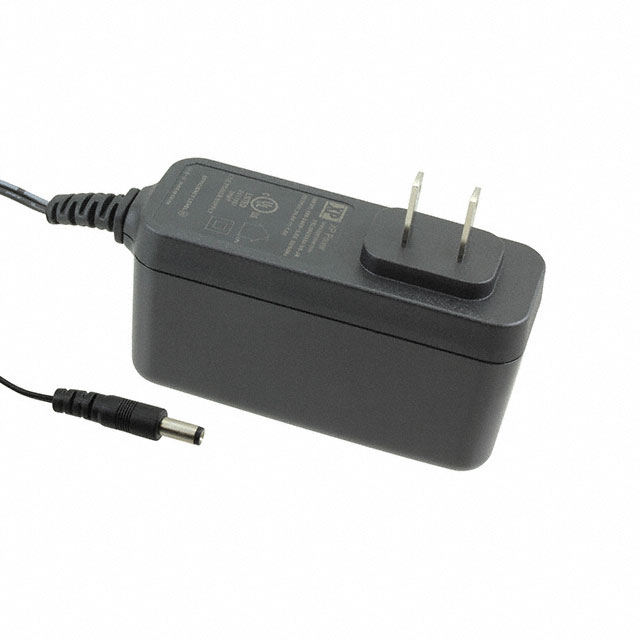

XP Power VEL36US150-US-JA	155.13 g	0.342 lb	75 mW	Fixed Blade	NEMA 1-15P	ITE (Commercial)	Wall Mount	1.5 m	59 in	2.1 mm	5.5 mm	Barrel Plug	12 mm	62368-1	CB CCC	Positive Center	15 V	264 VAC	90 VAC	2.4 A	36 W	North America							60 °C	CoC Tier 2 Level VI
