CGS SP Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RES SMD 2.21K OHM 0.1% 1.5W 2615

Part	Temperature Coefficient	Package / Case	Composition	Supplier Device Package	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Terminations [custom]	Features	Resistance	Power (Watts)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TE Connectivity AMP Connectors SP12K21B	20 ppm/°C	2615 J-Lead	Wirewound	SMD	0.1 %	0.15 "	6.48 mm	3.81 mm	0.255 in	2	Current Sense Moisture Resistant	2.21 kOhms	1.5 W	0.112 in	2.84 mm

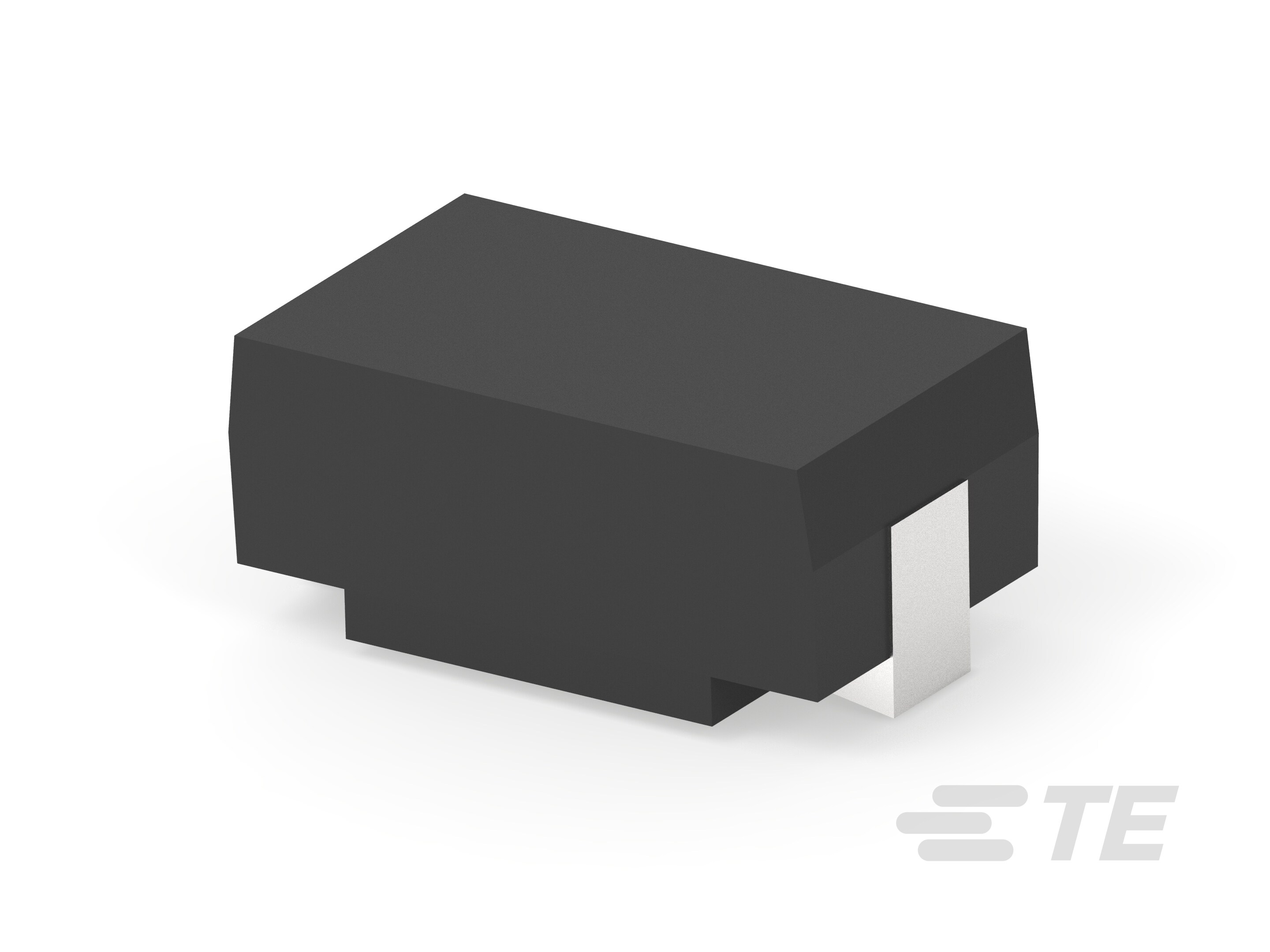

TE Connectivity AMP Connectors SP117R8ET
TE Connectivity AMP Connectors SP23K16FT	20 ppm/°C	4823 J-Lead	Wirewound	SMD	1 %	0.23 in	12.14 mm	5.84 mm	0.478 in	2	Current Sense Moisture Resistant	3.16 kOhms	2.5 W			5.33 mm	0.21 in
TE Connectivity AMP Connectors SP213R3FT	30 ppm/°C	4823 J-Lead	Wirewound	SMD	1 %	0.23 in	12.14 mm	5.84 mm	0.478 in	2	Current Sense Moisture Resistant	13.3 Ohms	2.5 W			5.33 mm	0.21 in
TE Connectivity AMP Connectors SP24K7FT	20 ppm/°C	4823 J-Lead	Wirewound	SMD	1 %	0.23 in	12.14 mm	5.84 mm	0.478 in	2	Current Sense Moisture Resistant	4.7 kOhms	2.5 W			5.33 mm	0.21 in
TE Connectivity AMP Connectors SP23K16F	20 ppm/°C	4823 J-Lead	Wirewound	SMD	1 %	0.23 in	12.14 mm	5.84 mm	0.478 in	2	Current Sense Moisture Resistant	3.16 kOhms	2.5 W			5.33 mm	0.21 in
TE Connectivity AMP Connectors SP11R0JT	50 ppm/░C	2615 J-Lead	Wirewound	SMD	5 %	0.15 "	6.48 mm	3.81 mm	0.255 in	2	Current Sense Moisture Resistant	1 Ohms	1.5 W	0.112 in	2.84 mm
TE Connectivity AMP Connectors SP1R10J	90 ppm/°C	2615 J-Lead	Wirewound	SMD	5 %	0.15 "	6.48 mm	3.81 mm	0.255 in	2	Current Sense Moisture Resistant	0.1 Ohms	1.5 W	0.112 in	2.84 mm
TE Connectivity AMP Connectors SP31R0JT	50 ppm/░C	6028 (15270 Metric) J-Lead	Wirewound	SMD	5 %	0.276 in	15.24 mm	7 mm	0.6 "	2	Current Sense Moisture Resistant	1 Ohms	3.5 W	0.255 in	6.48 mm
TE Connectivity AMP Connectors SP1150RFT	20 ppm/°C	2615 J-Lead	Wirewound	SMD	1 %	0.15 "	6.48 mm	3.81 mm	0.255 in	2	Current Sense Moisture Resistant	150 Ohms	1.5 W	0.112 in	2.84 mm
