Micro-Plug Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

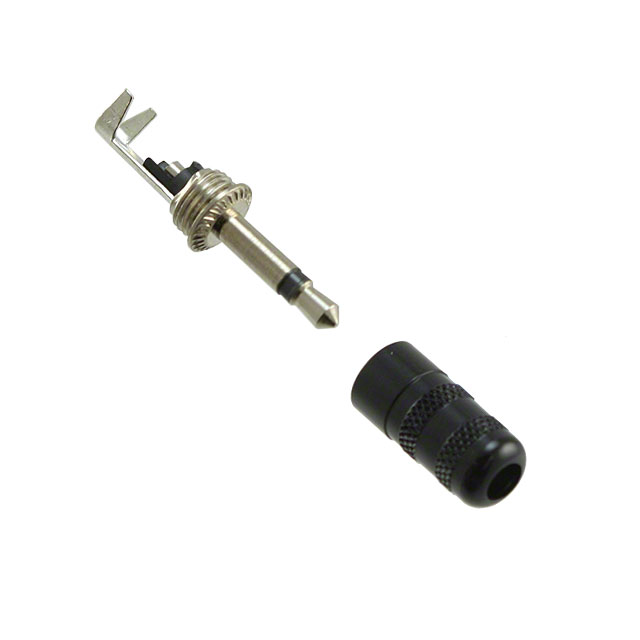

PHONE AUDIO CONNECTOR, 2 CONTACTS, PLUG, 0.101 ", CABLE MOUNT, NICKEL PLATED CONTACTS, METAL BODY
| Part | Contact Material | Cable Opening | Cable Opening | Contact Material - Plating | Housing Material | Body Material | Voltage - Rated | Body Color | Current Rating (Amps) | Mating Length/Depth | Mating Length/Depth | Includes | Internal Switch(s) | Mounting Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Connector Type | Signal Lines | Termination | Shielding | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Brass | 0.125 in | 3.18 mm | Nickel | Aluminum | Copper Alloy | 125 VAC | Black Silver | 0.125 Amps | 11.4 mm | 0.45 in | 1 Connector 1 Handle | Free Hanging (In-Line) | 2 | 2 | 0.097 in | 2.46 mm | Phone Plug | Mono | Solder Eyelet(s) | Unshielded | Male |
