Potter & Brumfield OAC Series

Catalog

OAC-15 = PCB MOUNT, 3A,120V AC - DC I/P

Part	Style	Features	Current - Output	Voltage - Output [Min]	Voltage - Output [Max]	Current - Input	Color	Turn On Time	Turn Off Time	Voltage - Input	Type
TE Connectivity AMP Connectors OAC-15	Standard	Hold Down Screw	3 A	12 VAC	120 VAC	16 mA	Black	8.33 ms	8.33 ms	15 V	AC Output Module
TE Connectivity AMP Connectors OAC-15A	Standard	Hold Down Screw	3 A	24 VAC	280 VAC	16 mA	Black	8.33 ms	8.33 ms	15 V	AC Output Module

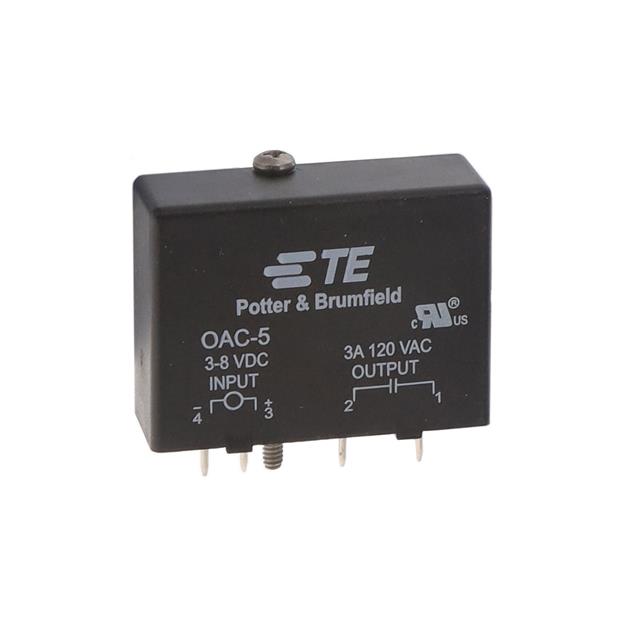

TE Connectivity AMP Connectors OAC-5	Standard	Hold Down Screw	3 A	12 VAC	120 VAC	20 mA	Black	8.33 ms	8.33 ms	5 V	AC Output Module
TE Connectivity AMP Connectors OAC-24A	Standard	Hold Down Screw	3 A	24 VAC	280 VAC		Black	8.33 ms	8.33 ms	24 VDC	AC Output Module

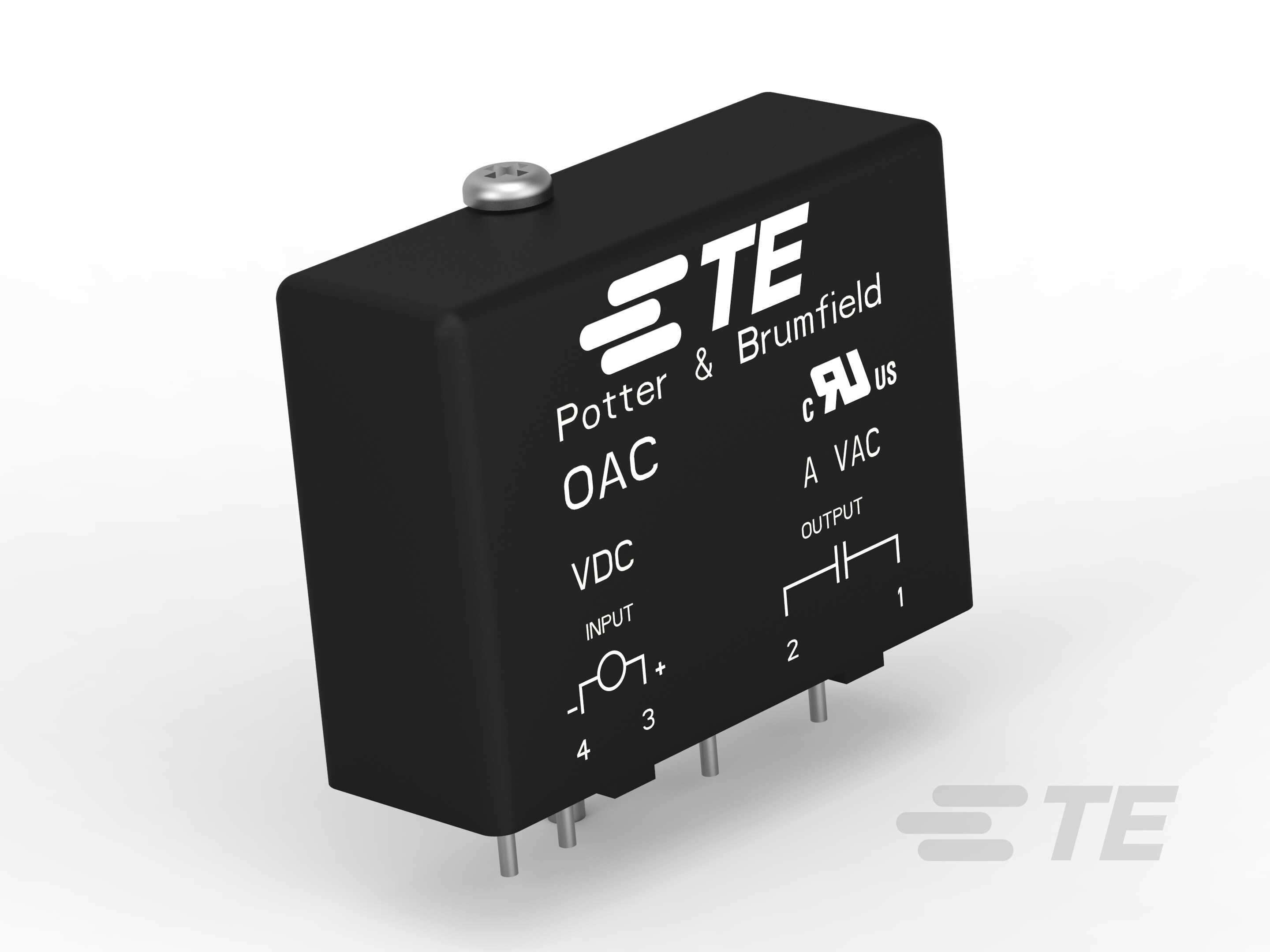

TE Connectivity AMP Connectors OAC-24	Standard	Hold Down Screw	3 A	12 VAC	120 VAC		Black	8.33 ms	8.33 ms	24 VDC	AC Output Module
TE Connectivity AMP Connectors OAC-5A	Standard	Hold Down Screw	3 A	24 VAC	280 VAC	20 mA	Black	8.33 ms	8.33 ms	5 V	AC Output Module
TE Connectivity AMP Connectors OAC-5H	Standard	Hold Down Screw	5 A	24 VAC	280 VAC	20 mA	Black	8.33 ms	8.33 ms	5 V	AC Output Module
