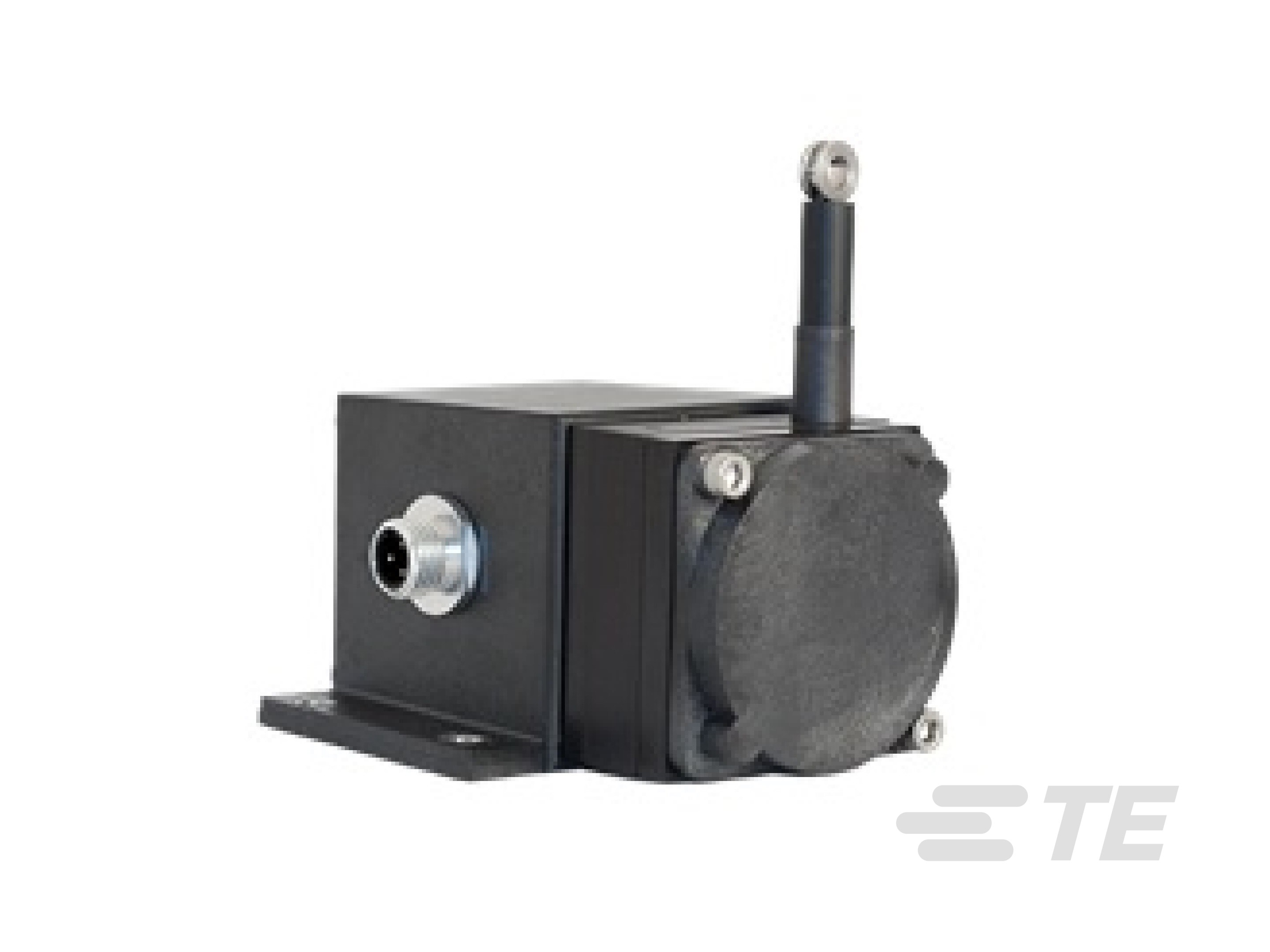

MEAS PT1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
PT1A-50-FR-1K-C25-SG : CTO
| Part | Mounting Type | Output Signal | Resistance | Voltage - Supply | Package / Case | Technology | Termination Style | Linear Range [Max] | Linear Range [Min] | Linear Range [Max] | Linear Range [Min] | Operating Temperature [Max] | Operating Temperature [Min] | For Measuring | Output | Resistance Tolerance | Actuator Type | Linear Range [Min] [x] | Linear Range [Max] [x] | Output [Max] | Output [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Chassis Mount | Clockwise Increase | 1000 Ohms | 30 VAC/DC | Module | Resistive | Cable | 12700 mm | 0 mm | 500 " | 0 " | 93 °C | -18 °C | Linear Position | Analog Voltage | 10% | String Potentiometer | ||||||
 TE Connectivity AMP Connectors | |||||||||||||||||||||||
 TE Connectivity AMP Connectors | |||||||||||||||||||||||
TE Connectivity AMP Connectors | |||||||||||||||||||||||
TE Connectivity AMP Connectors | Chassis Mount | Clockwise Increase | 1000 Ohms | 30 VAC/DC | Module | Resistive | Cable | 762 mm | 0 mm | 30 " | 0 " | 93 °C | -18 °C | Linear Position | Analog Voltage | 10% | String Potentiometer | ||||||
TE Connectivity AMP Connectors | |||||||||||||||||||||||
 TE Connectivity AMP Connectors | Chassis Mount | Module | Connector | 93 °C | -18 °C | Linear Position | String Potentiometer | 0 mm | 50 " | 4 mA | 20 mA | ||||||||||||
TE Connectivity AMP Connectors | Chassis Mount | Clockwise Increase | Module | Resistive | Connector | 508 mm | 0 mm | 20 " | 0 " | 93 °C | -18 °C | Linear Position | String Potentiometer | 4 mA | 20 mA | 14 V | 29 V | ||||||
 TE Connectivity AMP Connectors | |||||||||||||||||||||||
 TE Connectivity AMP Connectors | Chassis Mount | Clockwise Increase | Module | Cable | 254 mm | 0 mm | 10 in | 0 " | 93 °C | -18 °C | Linear Position | String Potentiometer | 10 V | 0 mV |
