8315 Series

Catalog

D SUB CONNECTOR, DB15, 15 CONTACTS, RECEPTACLE, IDC / IDT, DA, 8300 SERIES, STEEL BODY

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Color	Dielectric Material	Features	Termination	Flange Feature	Flange Feature	Mounting Type	Number of Positions	Shell Size, Connector Layout	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Material Flammability Rating	Contact Type	Connector Type	Contact Finish	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]

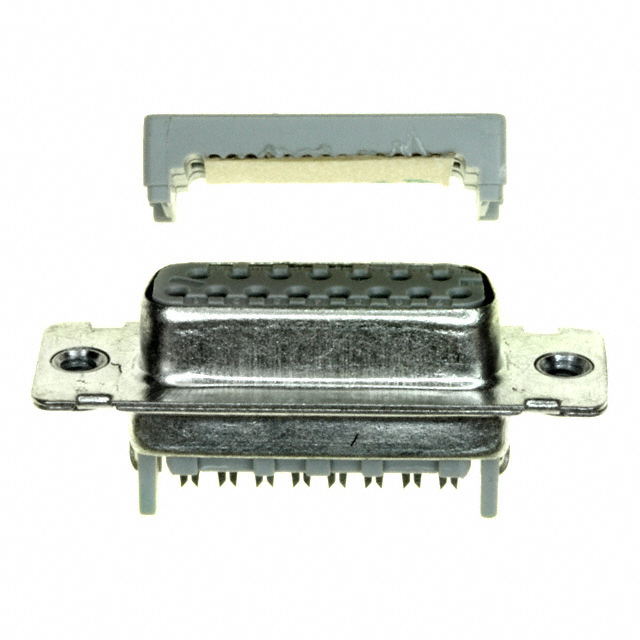

3M Electronic Specialty 8315-6003	-55 C	105 ░C	Copper Alloy	Gray	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through	IDC Ribbon Cable	Housing/Shell	4-40	Panel Mount	15	2	D-Sub	30 Áin	0.76 Ám	2	UL94 V-0	Signal	Receptacle Female Sockets	Gold
3M Electronic Specialty 8315-6000	-55 C	105 ░C	Copper Alloy	Gray	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through	IDC Ribbon Cable	Housing/Shell (Unthreaded)		Panel Mount	15	2	D-Sub	30 Áin	0.76 Ám	2	UL94 V-0	Signal	Receptacle Female Sockets	Gold
3M Electronic Specialty 8315-1-3/8"X23"X6"				White																	Carry Handle Strips	22.99 in	1.38 in	35.1 mm	583.9 mm
3M Electronic Specialty 8315-6009	-55 C	105 ░C	Copper Alloy	Gray	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Feed Through	IDC Ribbon Cable	Housing/Shell (Unthreaded)		Panel Mount	15	2	D-Sub	30 Áin	0.76 Ám	2	UL94 V-0	Signal	Receptacle Female Sockets	Gold
