PYB30 Series

Manufacturer: CUI Inc.

Catalog

DC/DC CONVERTER 15V 30W

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Mounting Type	Voltage - Output 1	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Efficiency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications	Package / Case	Voltage - Isolation	Features	Control Features	Current - Output (Max)	Voltage - Output 2	Voltage - Output 3	Current - Output (Max)	Current - Output (Max)
CUI Inc. PYB30-Q48-S15-U	0.75 in	2.66 in	2.16 in	19.1 mm	67.5 mm	55 mm	1	Chassis Mount	15 V	30 Watts	85 °C	-40 C	Enclosed	89 %	18 V	2 A	75 V	EN IEC

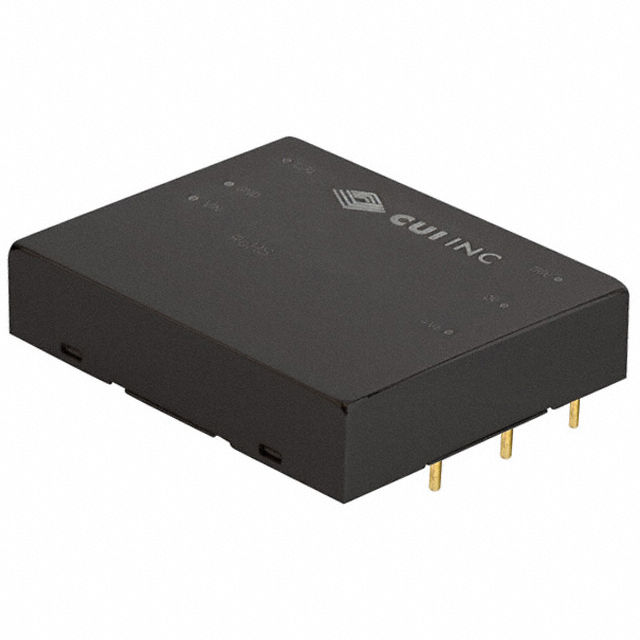

CUI Inc. PYB30-Q24-S15	11.8 mm	50.8 mm	40.6 mm				1	Through Hole	15 V	30 Watts	85 °C	-40 C	Isolated Module	90 %	9 V	2 A	36 V		0.47 "	2 in	1.6 in	ITE (Commercial)	7-DIP Module 6 Leads	1.5 kV	OCP OVP Remote On/Off SCP UVLO	Active High Enable
CUI Inc. PYB30-Q24-S12-U	0.75 in	2.66 in	2.16 in	19.1 mm	67.5 mm	55 mm	1	Chassis Mount	12 V	30 Watts	85 °C	-40 C	Enclosed	88 %	9 V	2.5 A	36 V	EN IEC
CUI Inc. PYB30-Q24-D15-U	0.75 in	2.66 in	2.16 in	19.1 mm	67.5 mm	55 mm	2	Chassis Mount	15 V	30 Watts	85 °C	-40 C	Enclosed	90 %	9 V		36 V	EN IEC									1 A	-15 V
CUI Inc. PYB30-Q48-D15-U	0.75 in	2.66 in	2.16 in	19.1 mm	67.5 mm	55 mm	2	Chassis Mount	15 V	30 Watts	85 °C	-40 C	Enclosed	87 %	18 V		75 V	EN IEC									1 A	-15 V
CUI Inc. PYB30-Q48-S12-U	0.75 in	2.66 in	2.16 in	19.1 mm	67.5 mm	55 mm	1	Chassis Mount	12 V	30 Watts	85 °C	-40 C	Enclosed	88 %	18 V	2.5 A	75 V	EN IEC
CUI Inc. PYB30-Q24-T312	11.8 mm	50.8 mm	40.6 mm				3	Through Hole	3.3 V	30 Watts	85 °C	-40 C	Isolated Module	85 %	9 V		36 V		0.47 "	2 in	1.6 in	ITE (Commercial)	7-DIP Module	1.5 kV	OCP OVP Remote On/Off SCP UVLO	Active High Enable	3.5 A 625 mA	12 V	-12 V
CUI Inc. PYB30-Q48-D5-U	0.75 in	2.66 in	2.16 in	19.1 mm	67.5 mm	55 mm	2	Chassis Mount	5 V	30 Watts	85 °C	-40 C	Enclosed	86 %	18 V		75 V	EN IEC									3 A	-5 V
CUI Inc. PYB30-Q48-T315	11.8 mm	50.8 mm	40.6 mm				3	Through Hole	3.3 V	30 Watts	85 °C	-40 C	Isolated Module	85 %	18 V		75 V		0.47 "	2 in	1.6 in	ITE (Commercial)	7-DIP Module	1.5 kV	OCP OVP Remote On/Off SCP UVLO	Active High Enable	3.5 A	15 V	-15 V	500 mA	500 mA
CUI Inc. PYB30-Q48-S5-U	0.75 in	2.66 in	2.16 in	19.1 mm	67.5 mm	55 mm	1	Chassis Mount	5 V	30 Watts	85 °C	-40 C	Enclosed	88 %	18 V	6 A	75 V	EN IEC
