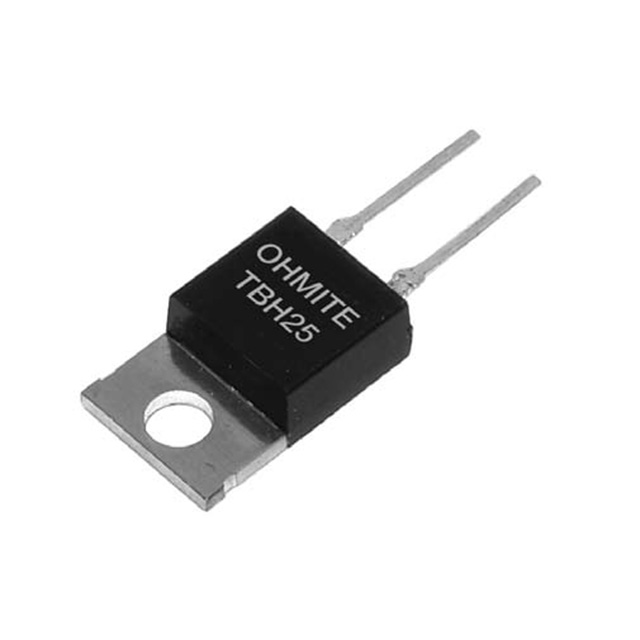

TBH Series

Manufacturer: Ohmite

Catalog

THICK FILM RESISTORS - THROUGH HOLE 25WATT 470OHM 5%

Part	Composition	Package / Case	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Tolerance	Supplier Device Package	Number of Terminations [custom]
Ohmite TBH25P470RJE	Thick Film	TO-220-2	470 Ohms	16 mm	0.63 in	10.2 mm	4.75 mm	0.402 in	0.187 "	25 W	Current Sense Moisture Resistant Non-Inductive	-55 C	150 °C	50 ppm/░C	5 %	TO-220	2
Ohmite TBH25P7R50JE	Thick Film	TO-220-2	7.5 Ohms	16 mm	0.63 in	10.2 mm	4.75 mm	0.402 in	0.187 "	25 W	Current Sense Moisture Resistant Non-Inductive	-55 C	150 °C	200 ppm/°C	5 %	TO-220	2
Ohmite TBH25P1K00JE	Thick Film	TO-220-2	1000 Ohms	16 mm	0.63 in	10.2 mm	4.75 mm	0.402 in	0.187 "	25 W	Current Sense Moisture Resistant Non-Inductive	-55 C	150 °C	50 ppm/░C	5 %	TO-220	2
