CVC Series

Manufacturer: Metcal

Catalog

SOLDERING TIP, CVC-9 SERIES, CHISEL, 5 MM, ADDITIONAL LENGTH

Part	Accessory Type	For Use With/Related Products	Tip Type	Length	Length	Tip Shape	Temperature Range	Temperature Range	Width [y]	Width [y]	Width [x]	Width [x]
Metcal CVC-9CH0050A	Cartridge	CV-500 CV-5200 MX-500 MX-5200
Metcal CVC-5CH0010P	Cartridge	CV-500 CV-5200 MX-500 MX-5200
Metcal CVC-5CN0005S	Cartridge	CV-500 CV-5200 MX-500 MX-5200
Metcal CVC-6BV4001S	Cartridge	CV-500 CV-5200 MX-500 MX-5200
Metcal CVC-9CH0050P		CV-500 CV-5200 CV-H1-AV CV-H7-AV HMX-500 MX-5000 MX-5200 MX-H1-AV MX-H7-SF MX-RM3E MX-RM6E	Soldering	0.24 in	6.1 mm	Chisel	510 °C	950 °F	5.33 mm	0.21 in

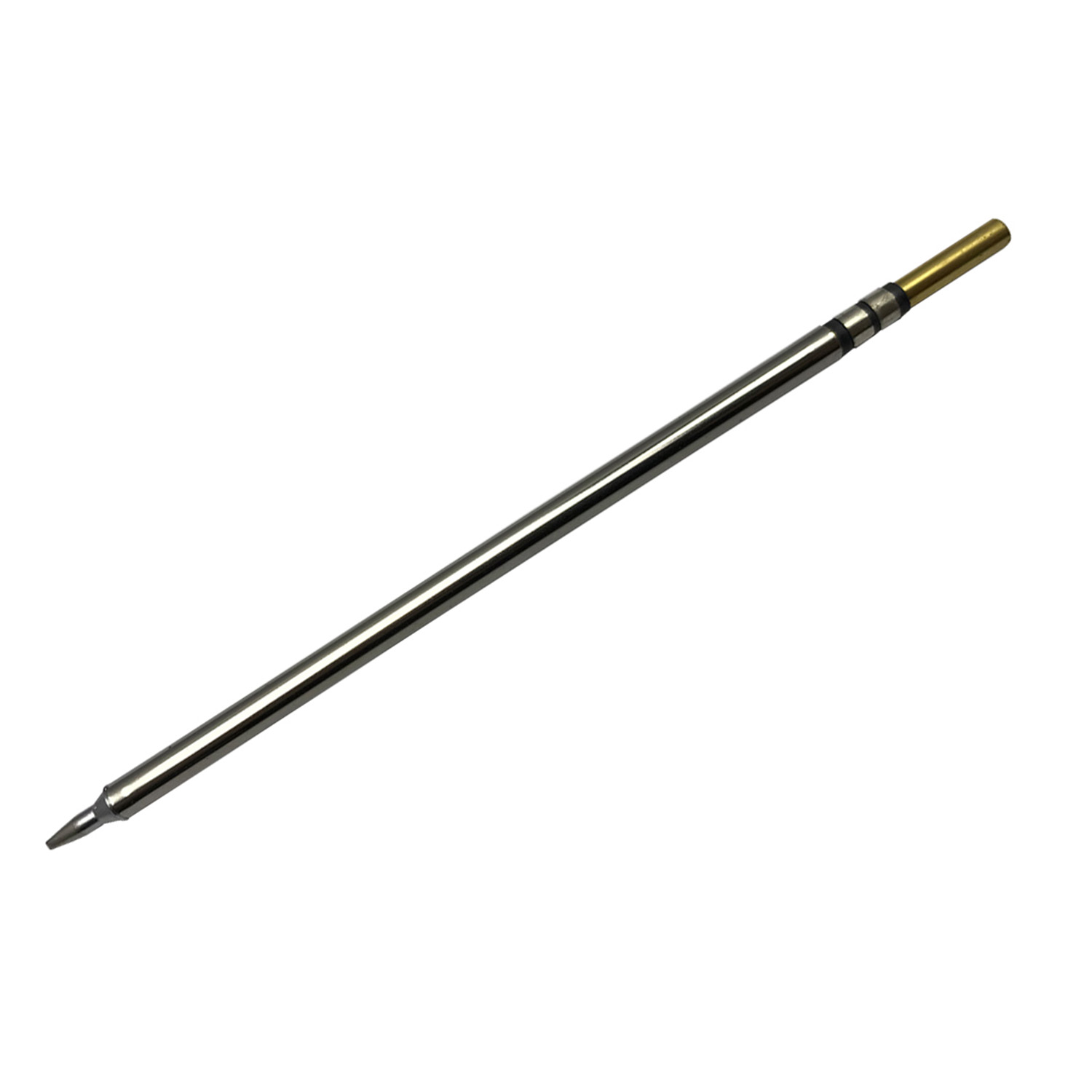

Metcal CVC-7CH0014S		CV-500 CV-5200 CV-H1-AV CV-H7-AV HMX-500 MX-5000 MX-5200 MX-H1-AV MX-H7-SF MX-RM3E MX-RM6E	Soldering	0.39 "	9.91 mm	Chisel	413 °C	775 °F			0.06 in	1.52 mm
Metcal CVC-9BV3018P	Cartridge	CV-500 CV-5200 MX-500 MX-5200
Metcal CVC-6CN4805S	Cartridge	CV-500 CV-5200 MX-500 MX-5200
Metcal CVC-5BV3018S	Cartridge	CV-500 CV-5200 MX-500 MX-5200
Metcal CVC-6BV3018S	Cartridge	CV-500 CV-5200 MX-500 MX-5200
