ECX-42 Series
Manufacturer: ECS Inc.
Beta
⌘K

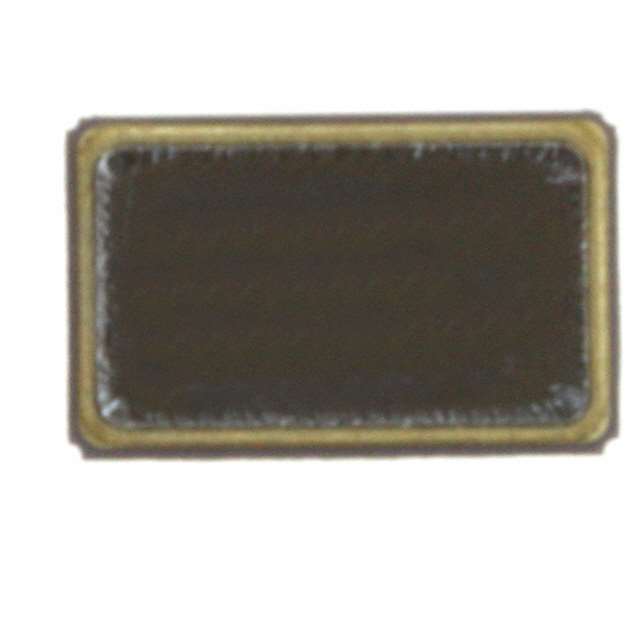

CRYSTALS CRYSTAL 14.4000MHZ 9PF SMD
| Part | Type | Package / Case | ESR (Equivalent Series Resistance) | Operating Temperature [Min] | Operating Temperature [Max] | Load Capacitance | Height - Seated (Max) [Max] | Height - Seated (Max) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Frequency Tolerance | Mounting Type | Operating Mode | Frequency Stability | Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | MHz Crystal | 4-SMD No Lead | 80 Ohm | -20 ░C | 70 °C | 9 pF | 0.031 in | 0.8 mm | 0.098 in | 2.5 mm | 4 mm | 0.157 in | 10 ppm | Surface Mount | Fundamental | 10 ppm | 14.4 MHz |
