TS72250 Series
Manufacturer: TagoreTech
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RF SWITCH SPDT 10MHZ-6GHZ 10W
| Part | Test Frequency | P1dB | Package / Case | Insertion Loss | RF Type | Topology | Circuit | Operating Temperature (Min) | Operating Temperature (Max) | Frequency Range (Max) | Frequency Range (Min) | Impedance | Mounting Type | Package Width | Package Name | Package Length | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | IIP3 | Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

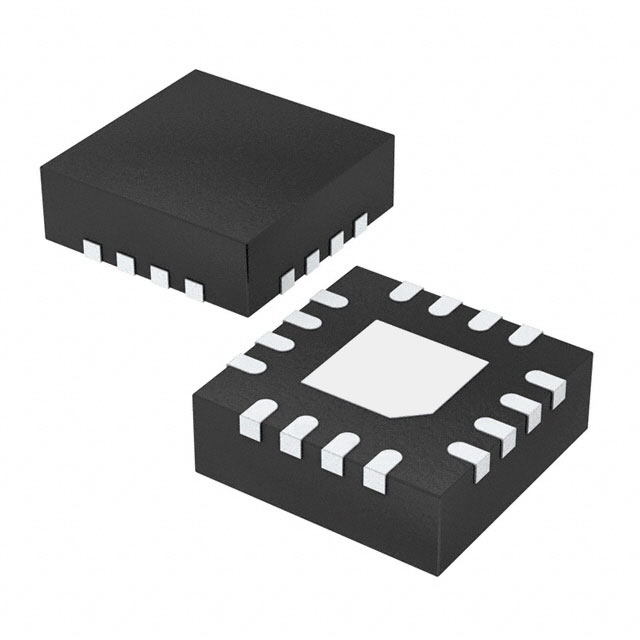

 TagoreTech | 800 MHz | 42 dBm | 16-VFQFN Exposed Pad | 0.35 dB | Cellular LTE | Reflective | SPDT | -40 °C | 85 °C | 6 GHz | 10 MHz | 50 Ohm | Surface Mount | 3 mm | 16-QFN | 3 mm | 5.5 V | 2.6 V | 73 dBm | 45 dB |
TagoreTech | 800 MHz | 42 dBm | 16-VFQFN Exposed Pad | 0.35 dB | Cellular LTE | Reflective | SPDT | -40 °C | 85 °C | 6 GHz | 10 MHz | 50 Ohm | Surface Mount | 3 mm | 16-QFN | 3 mm | 5.5 V | 2.6 V | 73 dBm | 45 dB |
