3667 Series

Catalog

CBL RIBN 34COND 0.05 GRAY

Part	Conductor Material	Insulation Resistance	First Conductor Mark	Ratings	Ribbon Thickness	Ribbon Thickness	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Shielding	Features	Length	Length	Wire Gauge	Ribbon Width [custom]	Ribbon Width [custom]	Cable Type	Voltage	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Number of Conductors [custom]	Length	Spool Size [x]	Spool Size [x]

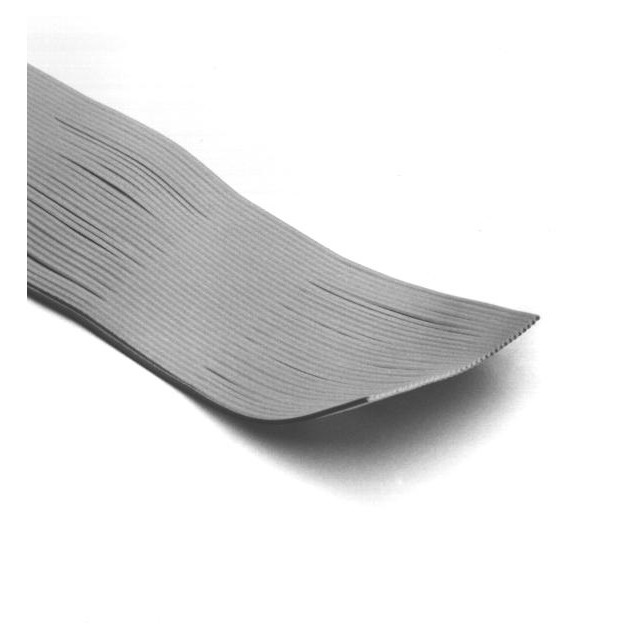

3M Electronic Specialty 3667/34 300	Copper Tinned	10 GOhm	Red	UL Style 2651	0.89 mm	0.035 in	Gray	-20 ░C	105 ░C	0.05 in	1.27 mm	Unshielded	Zippable	91440 mm	3600 in	28 AWG	43.18 mm	1.7 in	Flat Cable Split Conductor	300 VDC	34	36 AWG	7 Strands	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty 3667/64BU
3M Electronic Specialty 3667/10 300	Copper Tinned	10 GOhm	Red	UL Style 2651	0.89 mm	0.035 in	Gray	-20 ░C	105 ░C	0.05 in	1.27 mm	Unshielded	Zippable	91440 mm	3600 in	28 AWG	12.7 mm	0.5 in	Flat Cable Split Conductor	300 VDC		36 AWG	7 Strands	Poly-Vinyl Chloride (PVC)	10
3M Electronic Specialty 3667/14	Copper Tinned	10 GOhm	Red	UL Style 2651	0.89 mm	0.035 in	Gray	-20 ░C	105 ░C	0.05 in	1.27 mm	Unshielded	Zippable	30.48 m	100 '	28 AWG	17.78 mm	0.7 in	Flat Cable Split Conductor	300 VDC	14	36 AWG	7 Strands	Poly-Vinyl Chloride (PVC)		Enter Number of Feet in Order Quantity
3M Electronic Specialty 3667/16	Copper Tinned	10 GOhm	Red	UL Style 2651	0.89 mm	0.035 in	Gray	-20 ░C	105 ░C	0.05 in	1.27 mm	Unshielded	Zippable	30.48 m	100 '	28 AWG	20.32 mm	0.8 in	Flat Cable Split Conductor	300 VDC	16	36 AWG	7 Strands	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty 3667/34	Copper Tinned	10 GOhm	Red	UL Style 2651	0.89 mm	0.035 in	Gray	-20 ░C	105 ░C	0.05 in	1.27 mm	Unshielded	Zippable	30.48 m	100 '	28 AWG	43.18 mm	1.7 in	Flat Cable Split Conductor	300 VDC	34	36 AWG	7 Strands	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty 3667/20	Copper Tinned	10 GOhm	Red	UL Style 2651	0.89 mm	0.035 in	Gray	-20 ░C	105 ░C	0.05 in	1.27 mm	Unshielded	Zippable	91440 mm	3600 in	28 AWG	25.4 mm	1 in	Flat Cable Split Conductor	300 VDC	20	36 AWG	7 Strands	Poly-Vinyl Chloride (PVC)
3M Electronic Specialty 3667/20 100	Copper Tinned	10 GOhm	Red	UL Style 2651	0.89 mm	0.035 in	Gray	-20 ░C	105 ░C	0.05 in	1.27 mm	Unshielded	Zippable	30.48 m	100 '	28 AWG	25.4 mm	1 in	Flat Cable Split Conductor	300 VDC	20	36 AWG	7 Strands	Poly-Vinyl Chloride (PVC)		Enter Number of Feet in Order Quantity	30.48 m	100 ft
3M Electronic Specialty 3667/10 100	Copper Tinned	10 GOhm	Red	UL Style 2651	0.89 mm	0.035 in	Gray	-20 ░C	105 ░C	0.05 in	1.27 mm	Unshielded	Zippable	30.48 m	100 '	28 AWG	12.7 mm	0.5 in	Flat Cable Split Conductor	300 VDC		36 AWG	7 Strands	Poly-Vinyl Chloride (PVC)	10
