APMV Series

Catalog

POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) HIGHT CURRENT TYPE

Part	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max)	Material - Core	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR)	Package / Case	Shielding	Inductance Frequency - Test	Mounting Type	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]

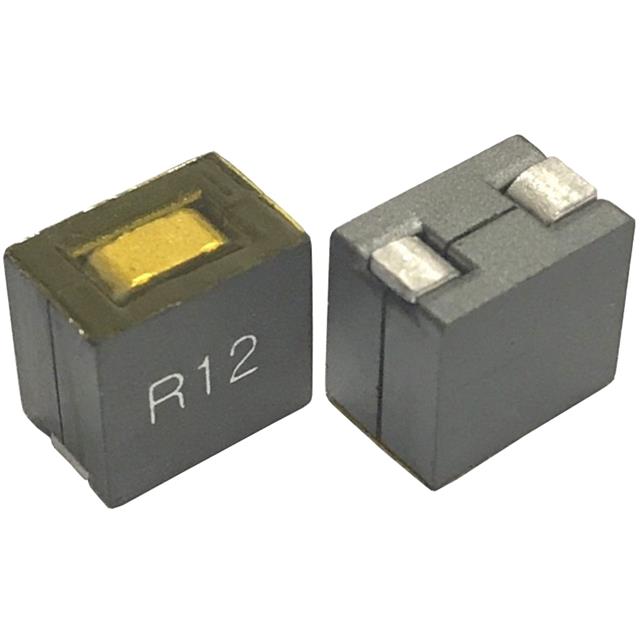

Pulse Electronics APMV00100612R12K0E	120 nH	0.472 in	12 mm	Ferrite	10 %	0.236 "	6 mm	10 mm	0.394 "	0.125 mOhm	Nonstandard	Shielded	100 kHz	Surface Mount	AEC-Q200	125 °C	-40 C	77 A
Pulse Electronics APMV00110812R32M0E	320 nH	0.472 in	12 mm	Ferrite	20 %		7.5 mm	10.7 mm		0.15 mOhm	Nonstandard	Shielded	100 kHz	Surface Mount	AEC-Q200	125 °C	-40 C		51 A	0.421 in	0.295 in
Pulse Electronics APMV00100612R15L0E	150 nH	0.472 in	12 mm	Ferrite	15 %	0.236 "	6 mm	10 mm	0.394 "	0.125 mOhm	Nonstandard	Shielded	100 kHz	Surface Mount	AEC-Q200	125 °C	-40 C	77 A	83 A
Pulse Electronics APMV00110812R18M0E	180 nH	0.472 in	12 mm	Ferrite	20 %		7.5 mm	10.7 mm		0.15 mOhm	Nonstandard	Shielded	100 kHz	Surface Mount	AEC-Q200	125 °C	-40 C		85 A	0.421 in	0.295 in
