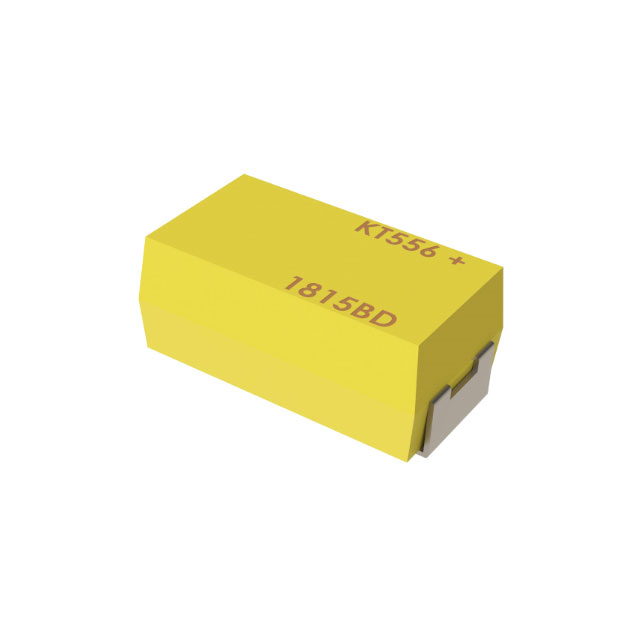

T556B Series

Manufacturer: KEMET

Catalog

CAP TANT POLYMER 180UF 10VDC B CASE 10% (24.5 X 8.5 X 9.1MM) J LEAD SMD 0.11 OHM 125°C SLEEVE

Part	Manufacturer Size Code	Voltage - Rated	Capacitance	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type	Package / Case	Lifetime @ Temp.	Mounting Type	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
KEMET T556B187K010AH	B	10 V	180 µF	10 %	9.6 mm	0.378 "	-55 C	125 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	110 mOhm	8.5 mm	0.965 "	24.5 mm	0.335 in
KEMET T556B187M010AH	B	10 V	180 µF	20 %	9.6 mm	0.378 "	-55 C	125 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	110 mOhm	8.5 mm	0.965 "	24.5 mm	0.335 in
KEMET T556B506K025AT	B	25 VDC	50 µF	10 %	9.6 mm	0.378 "	-55 C	125 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	170 mOhm	8.5 mm	0.965 "	24.5 mm	0.335 in
KEMET T556B506K025AH	B	25 VDC	50 µF	10 %	9.6 mm	0.378 "	-55 C	125 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	170 mOhm	8.5 mm	0.965 "	24.5 mm	0.335 in
KEMET T556B127K015AH	B	15 V	120 µF	10 %	9.6 mm	0.378 "	-55 C	125 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	110 mOhm	8.5 mm	0.965 "	24.5 mm	0.335 in
KEMET T556B206M060AT	B	60 VDC	20 µF	20 %	9.6 mm	0.378 "	-55 C	125 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	200 mOhm	8.5 mm	0.965 "	24.5 mm	0.335 in
KEMET T556B107M050AT	B	50 VDC	100 µF	20 %	9.6 mm	0.378 "	-55 C	125 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	130 mOhm	8.5 mm	0.965 "	24.5 mm	0.335 in
KEMET T556B687K008AH	B	8 V	680 µF	10 %	9.6 mm	0.378 "	-55 C	125 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	90 mOhm	8.5 mm	0.965 "	24.5 mm	0.335 in
KEMET T556B687K008AT	B	8 V	680 µF	10 %	9.6 mm	0.378 "	-55 C	125 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	90 mOhm	8.5 mm	0.965 "	24.5 mm	0.335 in
KEMET T556B506M025AT	B	25 VDC	50 µF	20 %	9.6 mm	0.378 "	-55 C	125 °C	General Purpose	Hermetically Sealed	Nonstandard	2000 Hrs	Surface Mount	170 mOhm	8.5 mm	0.965 "	24.5 mm	0.335 in
